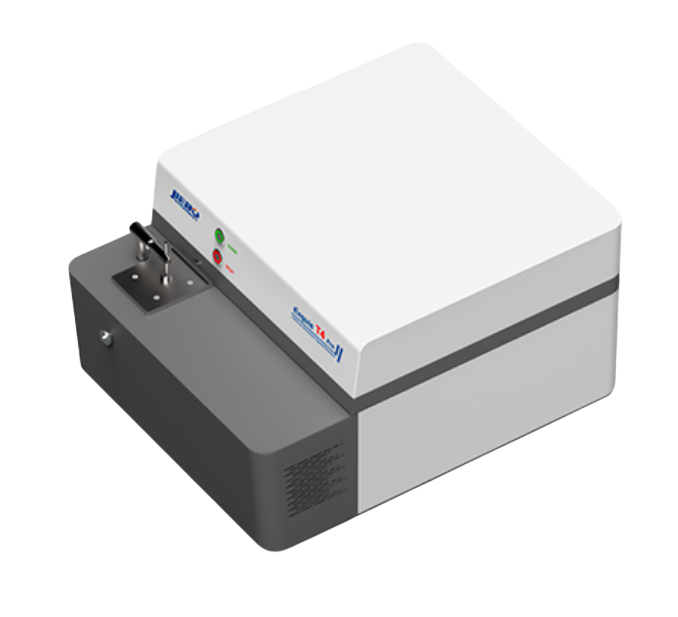

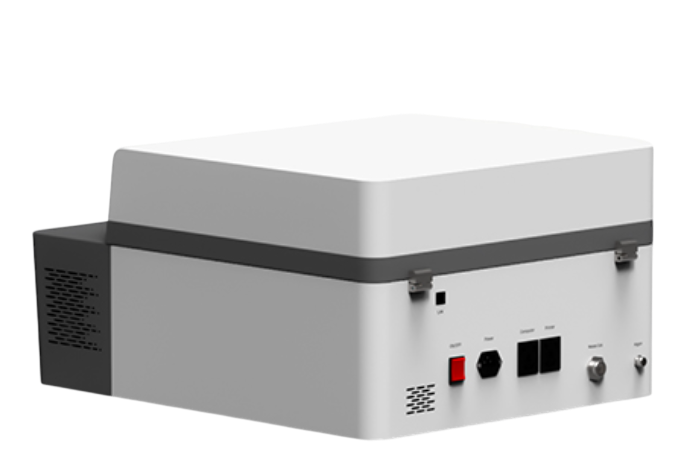

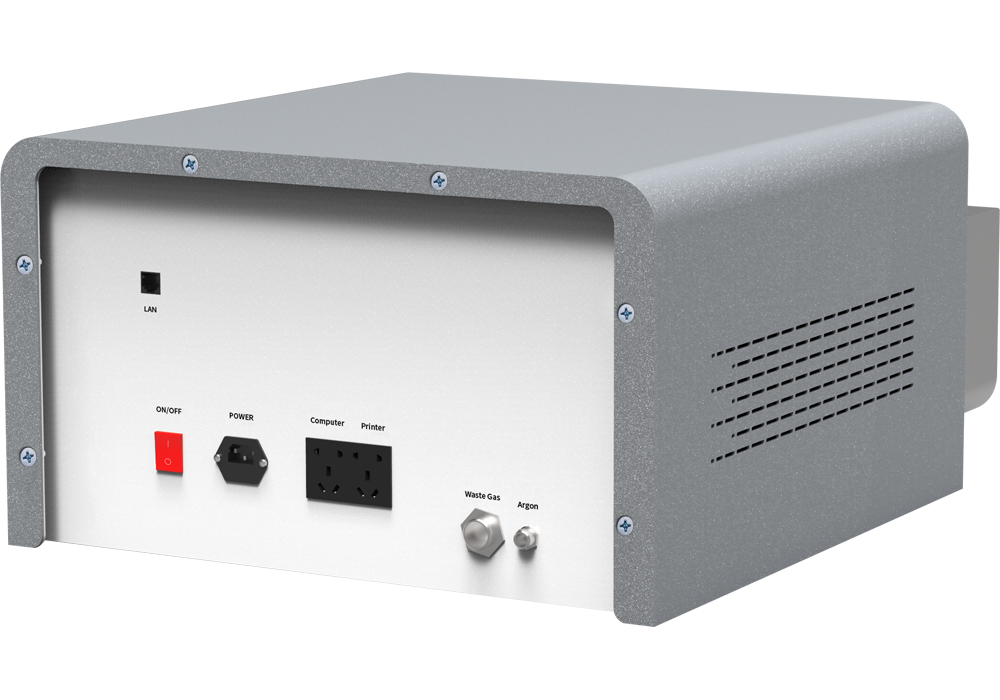

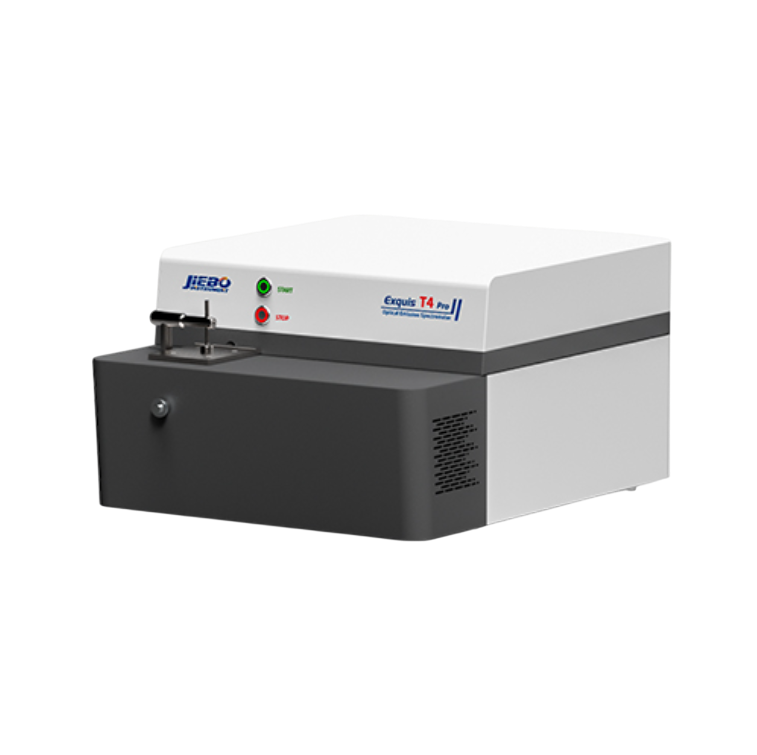

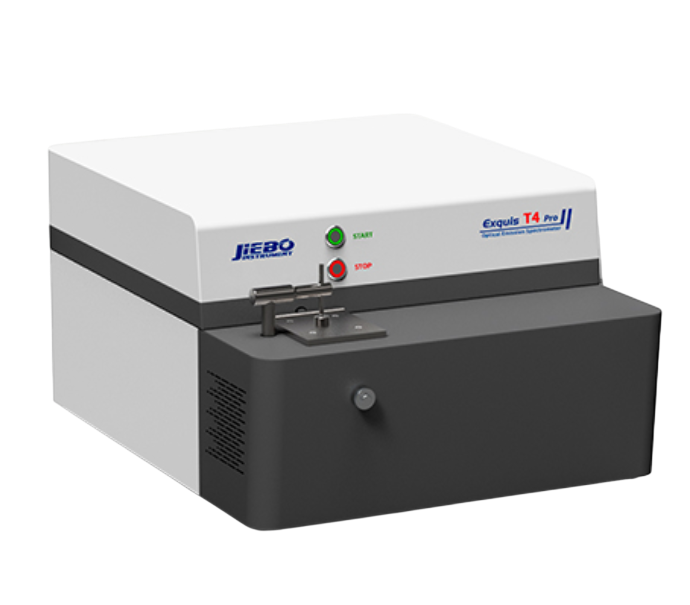

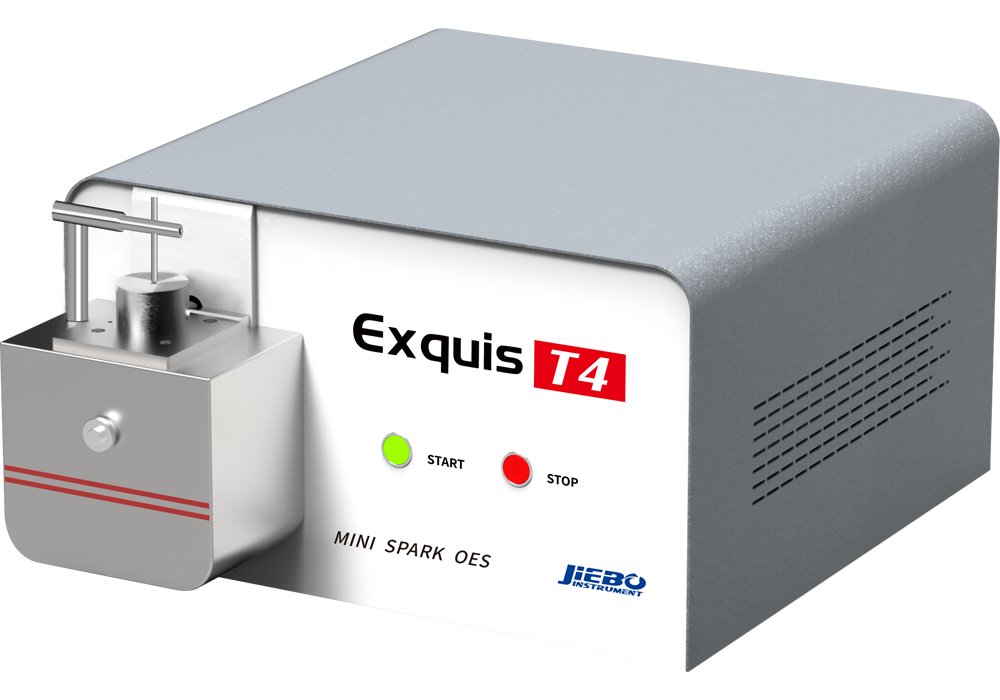

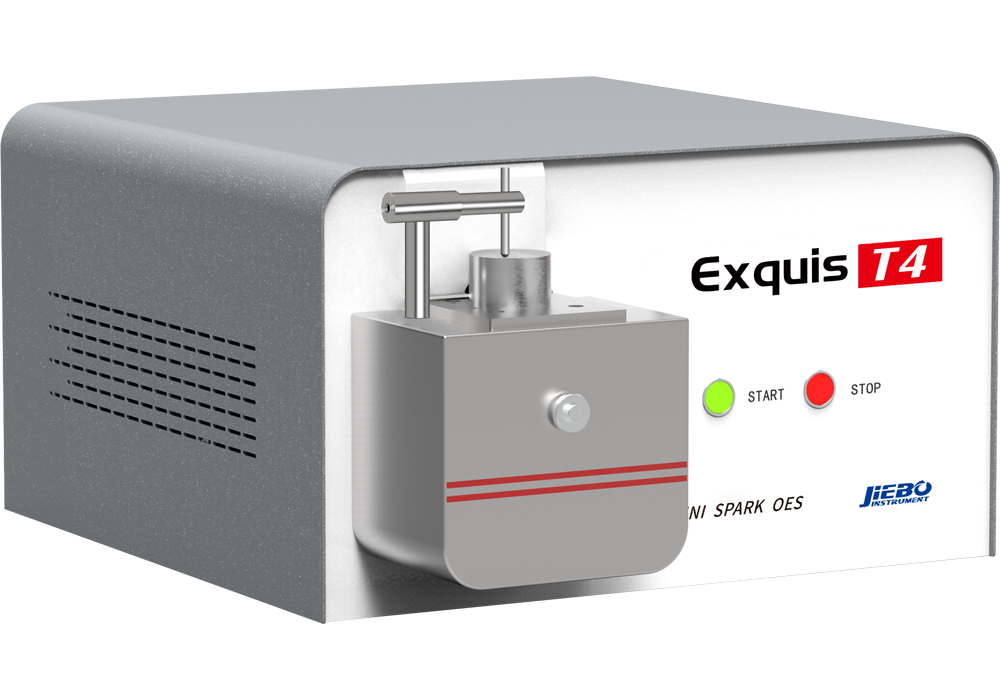

Exquis T4 Pro Optical Emission Spectrometer
High Performance, Compact Design, Superior Technology
Exquis T4 Pro, as the most compact model in the series, delivers high-precision analytical performance in a small body. With Hamamatsu CMOS sensor technology, it ensures low maintenance requirements and long-term stability. Thanks to the optical heating system, it operates stably between -5°C and +37°C and is unaffected by changes in ambient temperature.
Its user-friendly interface with multi-language support makes it easy to learn in a short time. With its compact design, accuracy, and ease of use, it sets a new standard in metal analysis.
Gallery
Features
Automotive Industry
Shipbuilding
Aviation and Space Industry
Nuclear Energy Sector
Petrochemical and Commodity Control
Bilimsel Araştırma Laboratuvarları
Weapons and Defense industry
Technical Parameters
Optical System: Paschen–Runge arrangement
Focal Length: 401 mm
Wavelength Range: 160–580 nm
Power Supply: AC 220V / 50Hz
Operating Conditions: -10–30°C / 20–80% relative humidity
Detectors: Multi high-performance CMOS detectors
Optical Chamber: Integrated design with automatic constant temperature control
Advantages
CMOS Full Spectrum Technology
- The Exquis T4 Pro features a processor motherboard with an ultra-fast data acquisition system that automatically monitors all operating conditions, including optical room temperature, argon pressure, light source, and spark system.
- Thanks to the enhanced jet stream technology and tungsten electrode structure, it achieves more stable and accurate results.
Continuous Support – Remote Connection Opportunity
Thanks to remote connection software, technical support can be provided instantly and continuously. Calibration and user training certificates are offered free of charge for life, and remote connection services are also free indefinitely under warranty.
Intelligent Quality Recognition and Advanced Reporting
- The device performs analysis in 30 seconds, automatically recognizes quality and compares results with existing standards, and exports them as PDF/Excel.
- Support for 30 elements can be increased to 48 with a free software upgrade.
- It comes loaded with a global standards quality library, and users can update element values according to their needs.
High-End Hardware
- The "all-in-one" computer system includes a 27-inch touchscreen, wireless keyboard, and mouse;
- Equipped with 16 GB RAM, 256 GB SSD storage, and Windows 11 Turkish operating system.
- Office programs and all necessary software come pre-installed.
- The set is delivered with a comprehensive toolkit containing calibration samples, spare parts, an argon gas meter, and connection equipment.
Advanced Light System – High Sensitivity
- No vacuum pump is needed to provide an inert environment to the optical chamber with argon gas. It eliminates the need for fiber optic cables.
- Exquis T4 Pro delivers precise and stable results similar to the PMT (Phototube) system with low detection limits.
- Combined with CMOS technology, it offers superior analytical capability.
