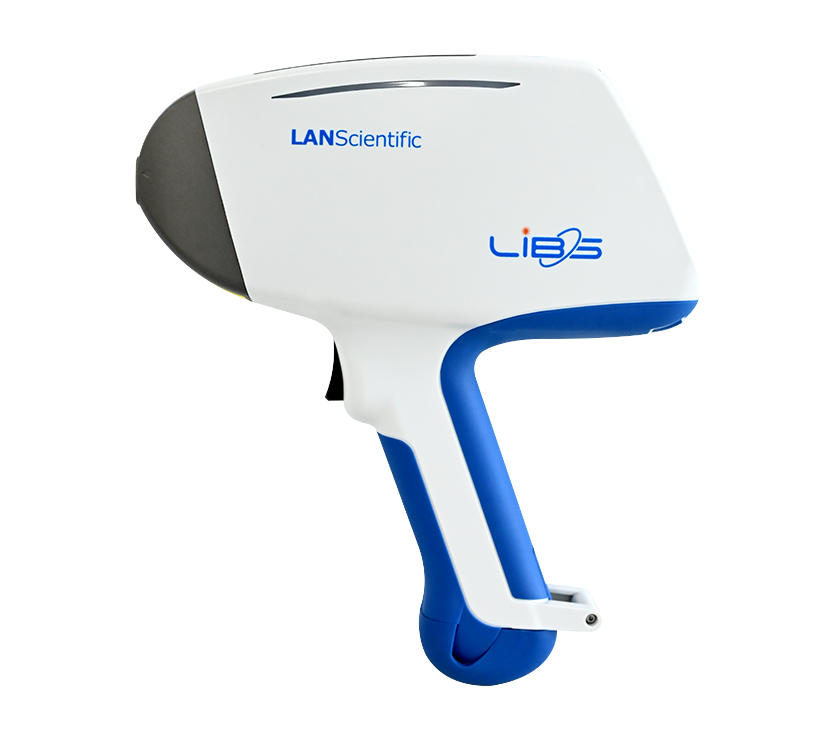

Handheld LIBS Alloy Analyzer

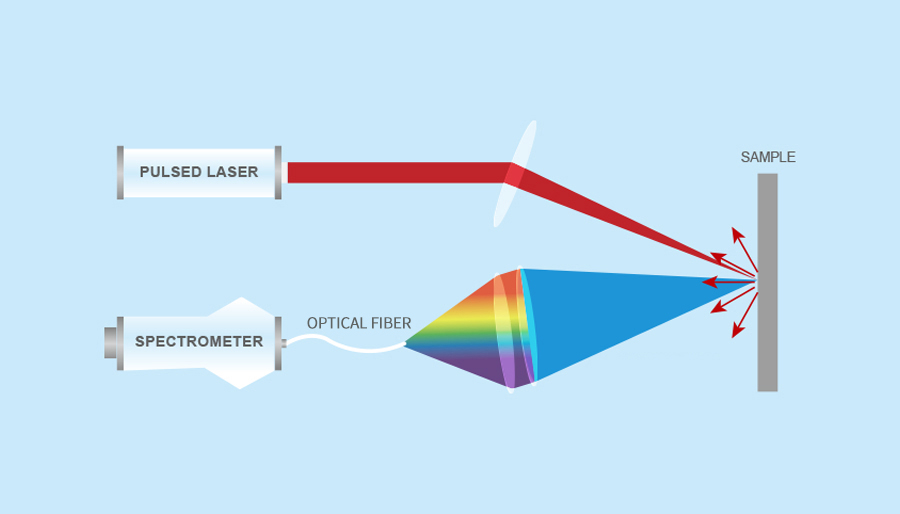

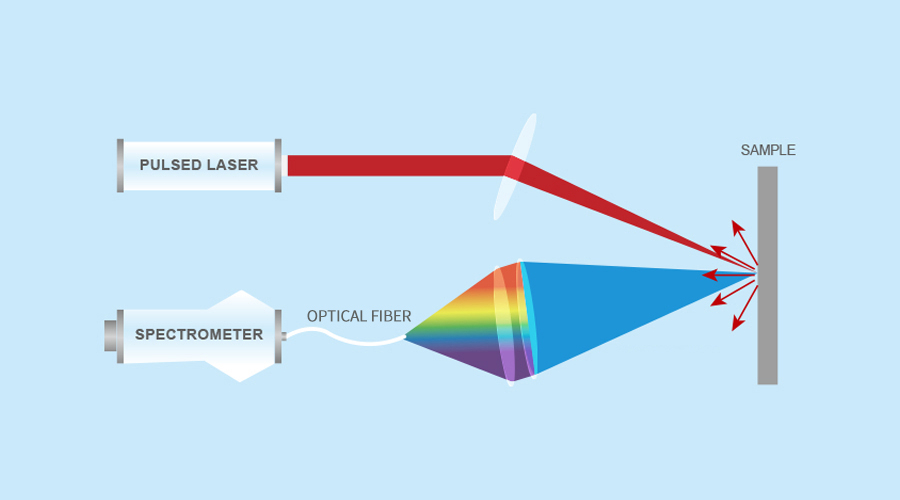

The handheld alloy analyzer is an advanced spectral analysis device integrated with laser-induced breakdown technology and spectral analysis methods. In addition to being lightweight and portable, it is easy to use, offers fast analysis speed, requires no sample preparation, has low destructiveness, a small spot detection area, and simultaneous online detection of multiple elements. It provides accurate grade identification of metal materials and quantitative elemental analysis, and is especially suitable for detecting light elements such as magnesium, aluminum, and silicon.
It offers a practical and effective elemental analysis solution for metal materials, metallurgical smelting, and other industries, providing users with a reliable tool for accurate and real-time sample analysis in complex environments.
Gallery
Features
Electronic Production
Aviation and Space
Construction Materials Industry
Metal Processing
Technical Parameters
| Core Technology | Integrated laser-induced breakdown technology and spectral analysis methods |
| Dimensions | 255mm x 294mm x 80mm（L×W×H） |
| Weight | 1.5kg (with battery) |
| Display system |
4.3-inch industrial-grade resistive touch screen Automatically adjust display brightness according to external environment brightness |
| Storage function |
32G |
| Laser | Solid state laser |
|
Spectral parameters |
<0.2nm resolution |
| Single test time |
Results in 1 second |
| High precision test mode |
Quick inspection model, general inspection model, precise inspection mode (the average value of multiple single test values can be analyzed through the algorithm) |
| Alloy base |
LIBS 800: Magnesium alloy, aluminum alloy LIBS 810: Magnesium alloy, aluminum alloy, copper alloy, nickel alloy, titanium alloy, lead alloy, zinc alloy, stainless steel, medium-low alloy steel, etc. |
| Test elements |
Mg、Al、Cr、Cu、Fe、 Mn、Ni、Si、Li、Ti、Zn、Zr、Pb、Sn、Sr, etc. (different models can test different elements) |
| Sample type | Cylinders, thin plates, wires above 1mm in diameter, foils (~0.02mm), large fragments (no powder) |
| Detection limit | Varies according to different base and elements |
| Work temperature | Standard 0~40℃ |
| Software |
Application update, data download and grade library custom editing, test report generation, calibration file editing, etc. |
| Safety | Sensing light safety interlock device |
| Battery |
Equipped with MSBUS bus smart battery, two single batteries can work continuously for about 8 hours, and the remaining battery capacity can be directly checked. It complies with aviation dangerous goods transportation regulations. |
| Waterproof performance | IP54 waterproof and dustproof rating |
Advantages
One second detection
One-touch operation, flexible and efficient detection in one second, results displayed in two seconds.
Portable and lightweight
The entire machine weighs only 1.5 kg, is compact in size, meets ergonomic requirements, has a powerful battery life, and can meet the testing needs of field applications.
security laser
Yüksek enerjili darbeli güvenlik (3B) lazer teknolojisi kullanılarak, normal kullanım insan vücudu için kesinlikle zararsızdır. Ayrıca, cihaz, kazara lazere maruz kalma riskini azaltmaya yardımcı olmak için bir sensör lazer güvenlik kilidi ile donatılmıştır.
Minor ablation injury
Micro-damage ablation damage is very small on the sample target surface and is almost invisible to the naked eye.
No need to prepare samples
The ability to perform elemental analysis of any material (solid, liquid, gas, and mixtures) with little or no sample preparation.
