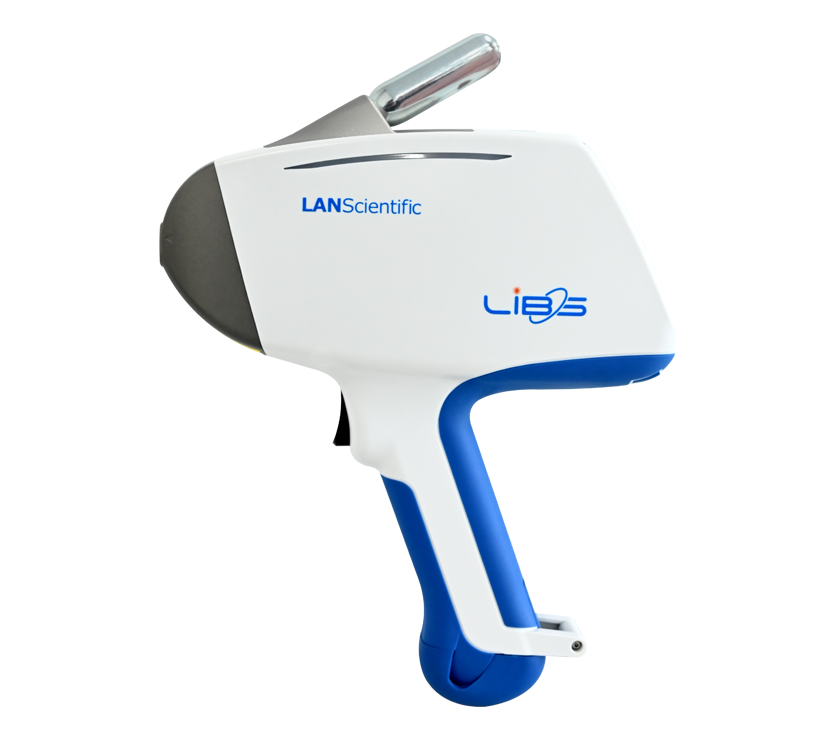

Handheld LIBS Laser Carbon Analyzer
The handheld LIBS laser carbon analyzer is an advanced spectral analysis device integrated with laser-induced breakdown technology and spectral analysis methods. In addition to being lightweight and portable, it is easy to use. It features fast analysis speed, no need for sample preparation, low destructiveness, small spot detection area, and simultaneous online detection of multiple elements. It enables accurate grade identification of metal materials and quantitative elemental analysis, and is particularly suitable for the detection of light elements such as magnesium, aluminum, and silicon.
The handheld LIBS laser carbon analyzer offers a practical and efficient elemental analysis solution for metal materials, metallurgical smelting, and other industries, providing users with a reliable tool for accurate and real-time sample analysis in complex environments.
Gallery
Features
Car Manufacturer
Waste recycling
Steel Smelting
Electronic Production
Technical Parameters

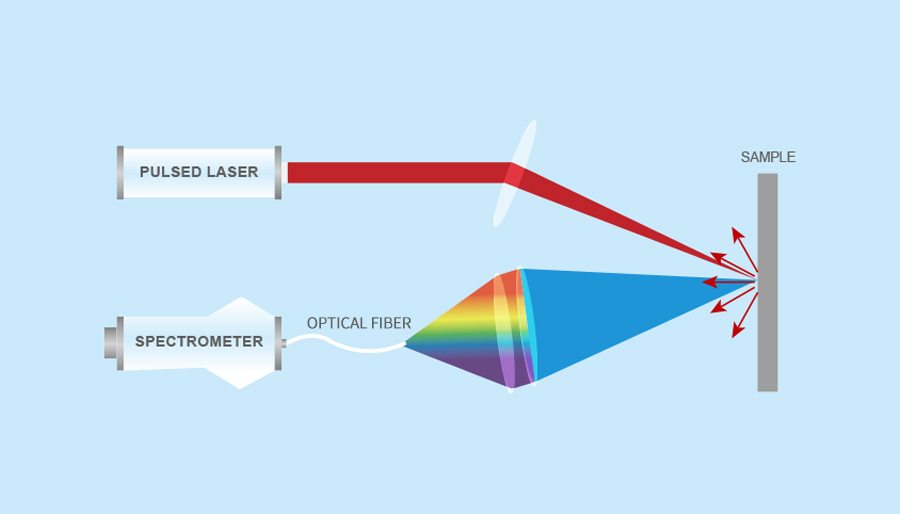

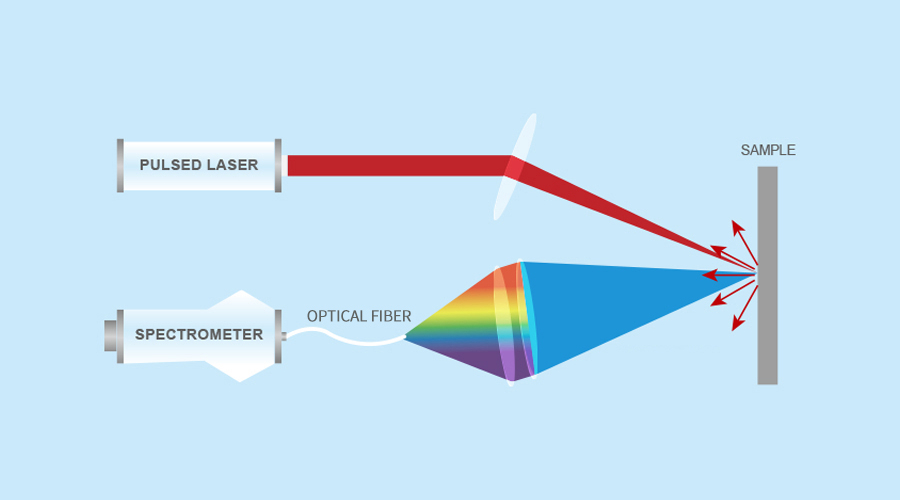

| Core Technology | Integrated laser-induced breakdown technology and spectral analysis methods |
| Dimensions | 255mm x 294mm x 80mm（L×W×H） |
| Weight | 1.7kg (with battery) |
| Display system |
4.3-inch industrial-grade resistive touch screen Automatically adjust display brightness according to external environment brightness |
| Storage function |
32G |
| Laser | Class 3B,1535nm, passive solid state laser |
|
Spectral parameters |
<0.1nm resolution |
| Single test time |
Results in 3 second |
| High precision test mode |
Quick inspection model, general inspection model, precise inspection mode (the average value of multiple single test values can be analyzed through the algorithm) |
| Test elements |
C、Al、Cu、Mg、Ni、Fe、Si、Sn、Zn、Mn、Ti、Zr、Cr、Bi、Pb、Ag, etc. (different models can test different elements) |
| Sample type |
Cylinders, thin plates, wires above 1mm in diameter, foils (~0.02mm), large fragments (no powder) |
| Alloy base |
LIBS 820C:Low and middle alloy steel LIBS 830C:Stainless steel |
| Detection limit | LIBS 820C：0.1%
LIBS 830C：0.01% |
| Work temperature | Standard 0~40℃ |
| Protective gas | Argon gas |
| Software |
Application update, data download and grade library custom editing, test report generation, calibration file editing, etc. |
| Safety | Sensing light safety interlock device |
| Battery |
Equipped with MSBUS bus smart battery, two single batteries can work continuously for about 8 hours, and the remaining battery capacity can be directly checked. It complies with aviation dangerous goods transportation regulations. |
Advantages
One second detection
One-button operation, flexible and effective detection in one second, results displayed in 3 seconds.
High detection sensitivity and signal-to-noise ratio
Argon gas effectively removes O₂ and N₂ in the air, reducing molecular spectral line interference (such as CN and NO) in the plasma, thereby making carbon characteristic spectral lines clearer.
Light element detection
Compared to XRF technology, LIBS technology has excellent light element detection capabilities and can easily detect elements such as C, Be, B, Li, etc.
Minor ablation injury
Micro-damaged ablation damage is very small on the sample target surface and is almost invisible to the naked eye.
Low detection limit
High-resolution hardware features and patented assembly algorithms provide the device with higher accuracy and lower detection limits. In most routine applications, LIBS technology offers a wide detection limit range from ppm to percentage levels to meet various analytical needs.
security lasers
It uses high-energy impact-resistant (3D) laser technology. It poses no danger to the human body. Additionally, the device is equipped with a sensor laser safety interlock to help reduce the risk of intentional laser exposure.
Equipment maintenance
The device features an innovative design that enables operation with low energy consumption, reduces maintenance and operational workloads, and performs better than similar products in the industry. It provides fast customer service and technical support to ensure immediate resolution of user issues.
Portable and lightweight
The entire machine weighs only 1.65 kg, is compact in size, meets ergonomic requirements, has a powerful battery life, and can meet the testing needs of field applications.
