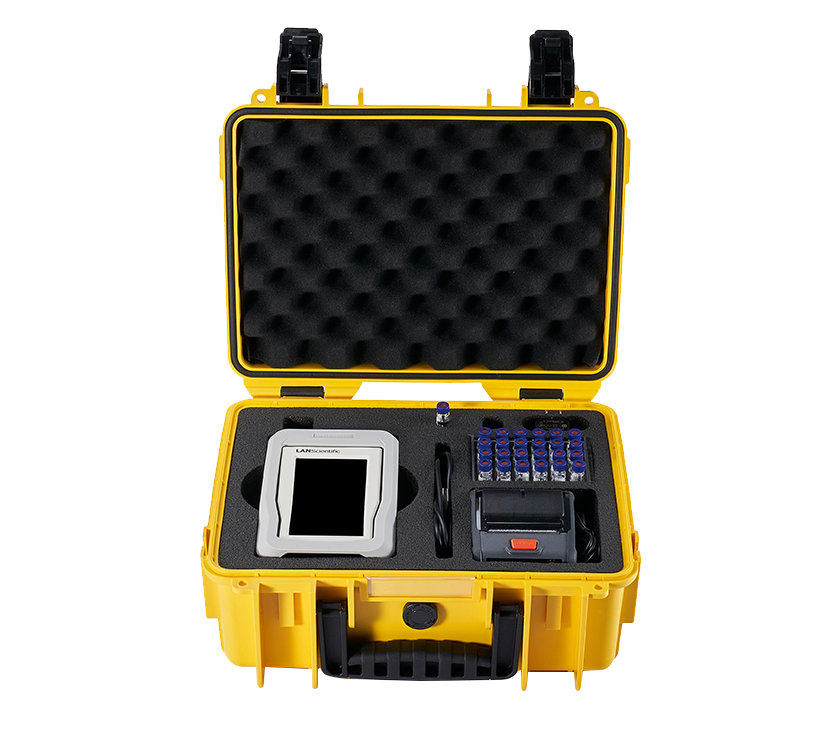

Handheld Raman Spectrometer
RA200 is a portable Raman spectrometer launched by LANScientific. It adopts spatially matched optics, electronic design, and integrated stoichiometry algorithms, offering ease of use and excellent performance. It is widely used in medicine, petroleum, chemical industry, environmental protection, food, materials, public safety, maritime, national defense, and other fields.

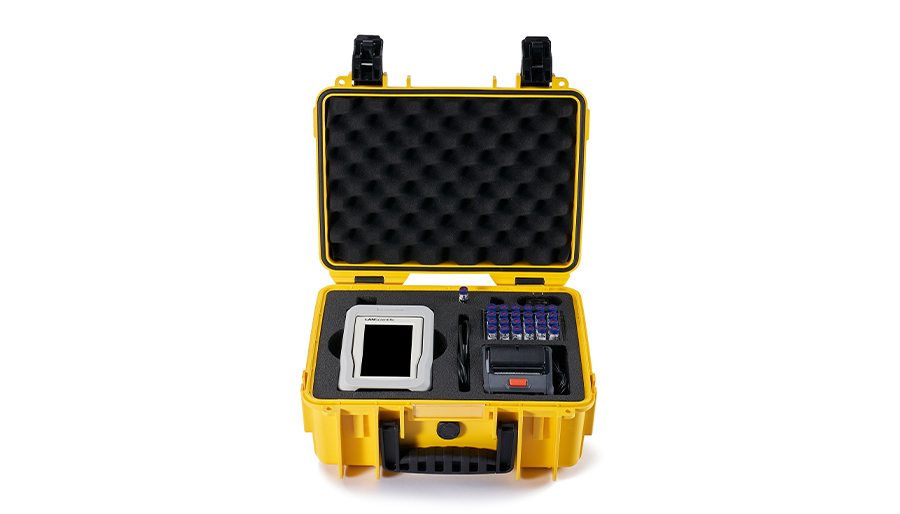

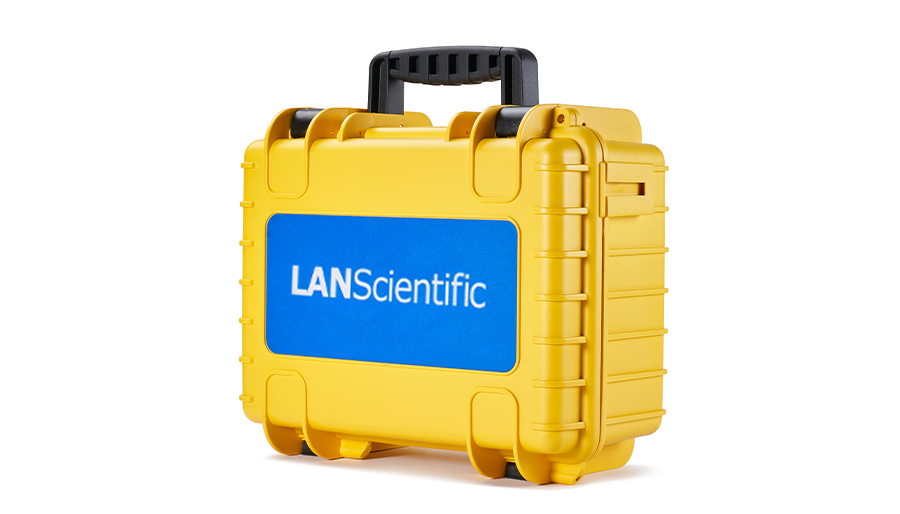

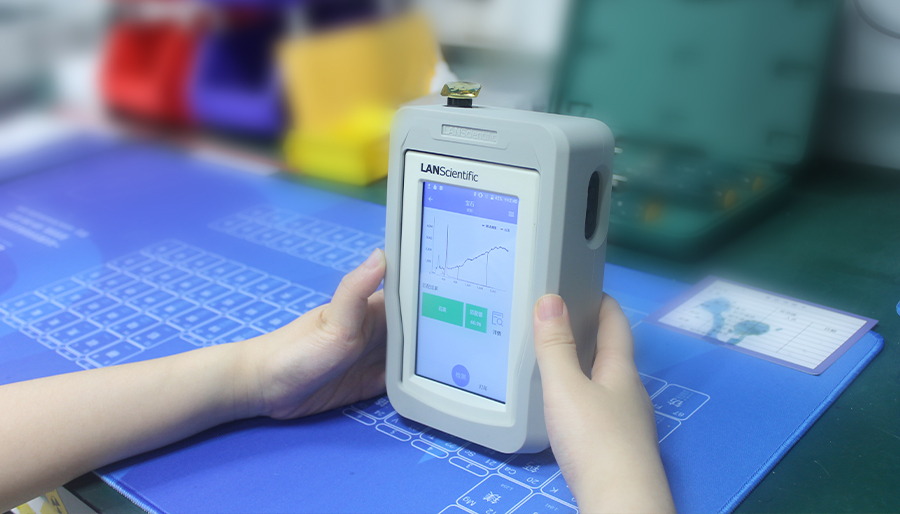

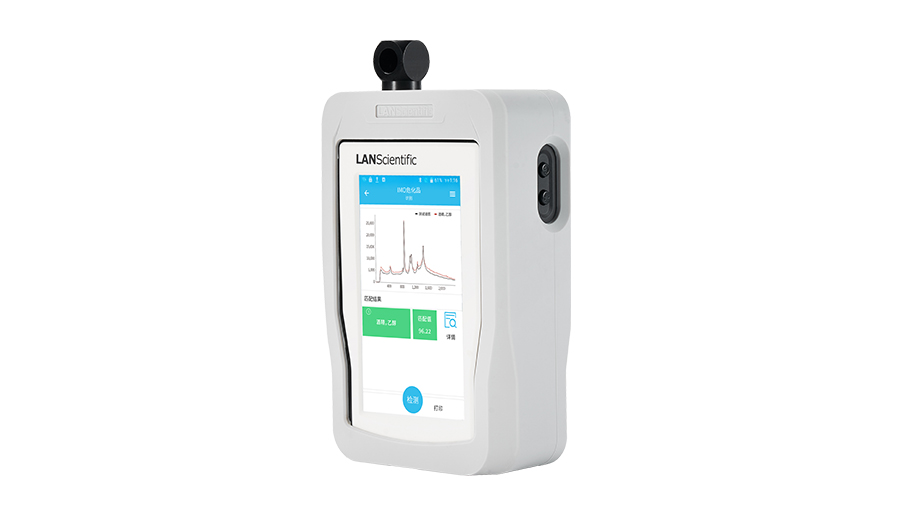

Gallery
Features
Pharmaceutical field
Petrochemical industry
Food safety
Biomedical Science / Nondestructive testing / Bacterial testing, etc.
Scientific research / Environmental sensing / Testing of optical and semiconductor components, etc.
Technical Parameters
| Operating system (OS) | Android |
| The wavelength of the laser was determined by the wavelength of the laser | 785 ± 0.5nm |
| The laser power is higher than that of the laser | 0-500mW,Can be change |
| Raman shift range | 200 - 3000cm-1 |
| The resolution | 8-12cm-1 |
| Touch screen | 5 inch，1920×1080，Multi-Touch |
| Size | 175mm x 106mm x 60mm（L×W×H） |
| Weight | 1.1kg |
| Communication interface | 4G、WIFI、USB、Bluetooth |
| The database | Database of up to 20,000 substances |
| The power supply | Rechargeable lithium battery, working time ≥6 hours |
| Charging way | USB |
| Operating temperature | -20 – 50℃ |
| Working environment humidity | 0%—90%RH |
Advantages
User management
You can manage existing accounts on the instrument and add new users.
No need for sample processing
Rapid identification of unknown solids and liquids (including aqueous and other types of solutions) through glass, plastic bags, transparent or translucent containers; no sample preparation required, easy to use.
Easy customization
The embedded color touchscreen, with its simple and intuitive user interface, allows users to create databases and manage the device according to their actual needs.
Multi-format data output
A portable Bluetooth printer can be configured, and data can be output in EXCEL and PDF formats. Users can create customized reports.
Database service
A comprehensive, customizable checklist database containing extensive libraries of controlled substances, diluents, and precursors to help users quickly and accurately scan samples.
Identification of results
Its ability to automatically provide clear judgment results has greatly facilitated daily test sample verification tasks.
