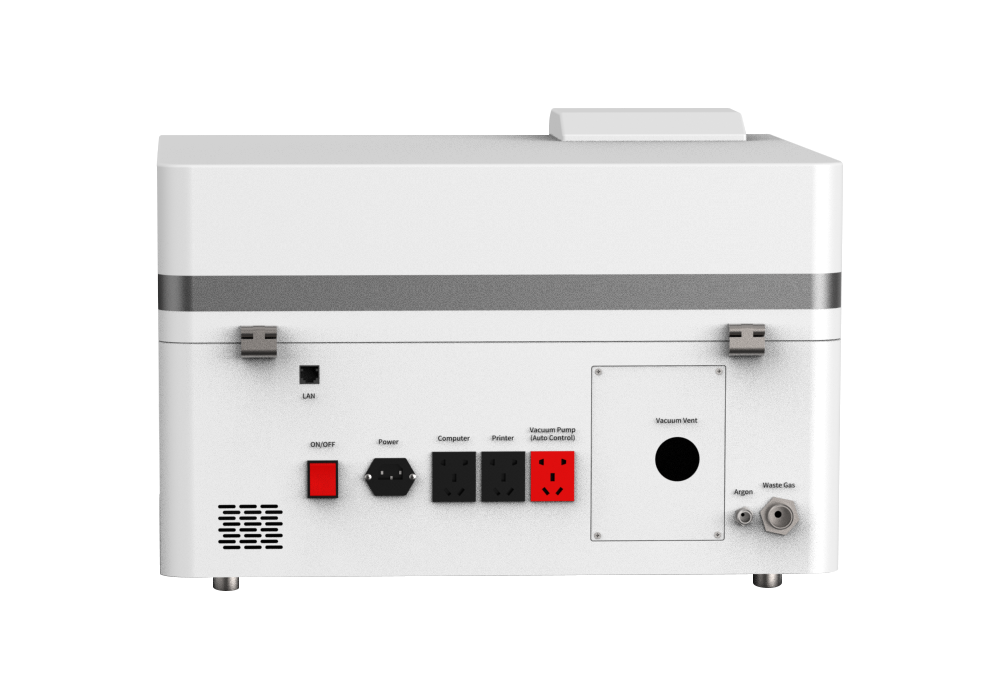

Optical Emission Spectrometer - Metal Analyzer

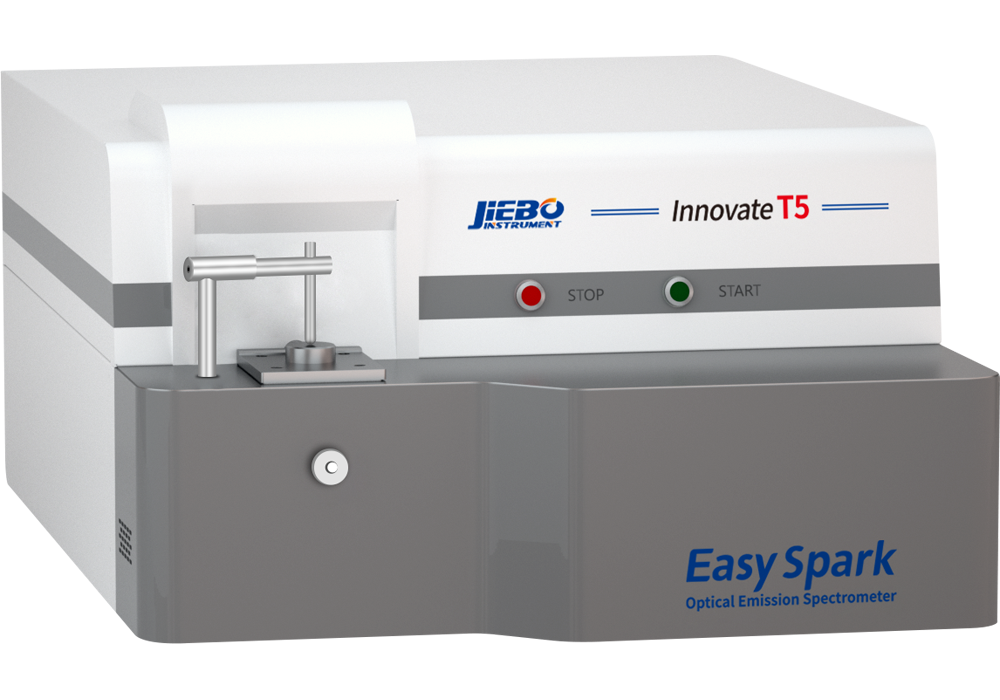

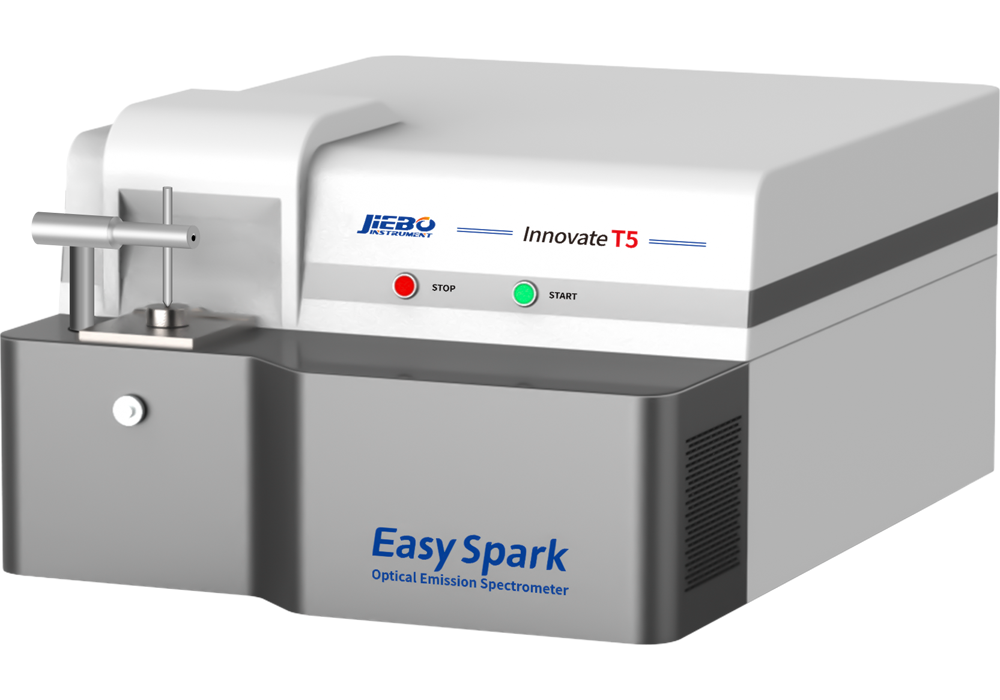

Innovate T5 Optical Emission Spectrometer provides high performance, reliability, and space-saving as a vacuum-pumped benchtop spectrometer. Thanks to high-resolution CMOS sensors manufactured by Hamamatsu and the optical heating system, it delivers stable measurements between -5°C and +37°C.
High efficiency is achieved with a fiberless digital light source and an argon-purged vacuum optical chamber. The full-spectrum advantage of CMOS and the low detection limits of PMT detectors ensure high precision in metal analysis.
Gallery
Features
Machinery and Engine Industry
Aviation and Space Industry
Metal Processing
Elemental Analysis
Weapons and Defense Industry
Technical Parameters
Technical Specifications
Optical System: Paschen–Runge arrangement
Focal Length: 401 mm
Wavelength Range: 140–680 nm
Detector: Multi high-resolution CMOS
Optical Chamber: Integrated vacuum design
Light Source: Digital, high combustion technology
Power Supply: AC 220V / 50Hz
Operating Conditions: 10–30°C / 20–80% relative humidity
Operating Temperature: -5°C ~ +42°C
Storage Temperature: 0 ~ 45°C
Argon Gas Requirements
Purity: ≤ 99.9999%
Input Pressure: 0.5 MPa
Consumption (Flow Rate): 3.5 L/min
Dimensions and Weight
L590 × W790 × H350 mm, 78 kg
Advantages
Energy-Saving and Durable Design
- The vacuum pump operates automatically, saving energy.
- The purity of the argon gas is 99.999%, with an inlet pressure of 0.5 MPa and a flow rate of 3.5 L/min.
Fast and Precise Analyses
- It provides analysis results in approximately 30 seconds.
- Results can be exported in PDF and Excel formats. The standard 30-element system can be expanded up to 48 elements with just a software update.
- It offers precise measurements at ppm levels for low wavelength elements (e.g., nitrogen).
Hardware and Software Features
- The device comes with a 27-inch touchscreen computer, wireless keyboard, and mouse set.
- The computer system is equipped with an i5 processor, 16 GB RAM, 256 GB SSD, and Windows 11 Turkish operating system.
- Auxiliary software such as Office is pre-installed.
User-Friendly and Multilingual Interface
- With Turkish and multilingual support, all personnel can easily use it with just 2 hours of training.
- It comes preloaded with a global quality standards library and can be updated according to user requests.
