PeDX Oil Analyzer
PeDX OIL is a portable XRF analyzer that offers sulfur analysis methods for the energy industry. It can analyze the content of oil and wear elements, contaminants, and the presence of sulfur in lubrication oil, diesel fuel, kerosene, jet fuel, other distillate oils, volatile oil, residual oil, hydraulic oil, crude oil, unleaded gasoline, ethanol gasoline, biodiesel, and petroleum products within minutes.
The safe and high-quality analysis of sulfur content in liquid, solid, or gas samples can also be carried out in other areas where petroleum products are used.
Gallery
Features

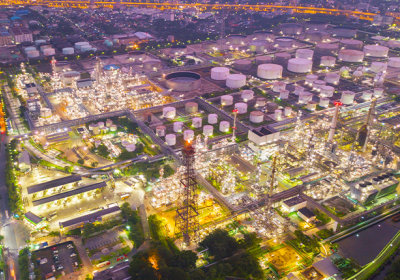

Refinery

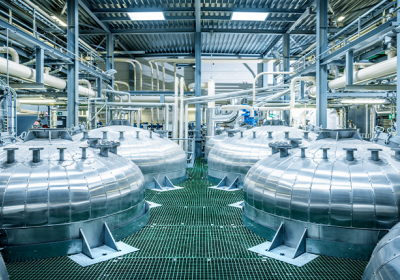

Oil refining industry

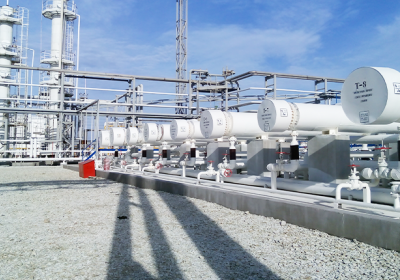

Oil pipeline
Analysis of Sulfur Content in Marine Fuels
Technical Parameters
| Weight | 4.1kg |
| Size | 200mm×200mm×268mm（L×W×H） |
| Size of Sample Room | 170mm×130mm×60mm（L×W×H） |
| Excitation source | Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target |
| Detector |
BOOST Si-pin/SDD(Optional) |
| Operation System |
Based on the I. MX 6 Quad， quad-core Cortex-A9 processor Dedicated analytics operating system, 32GB of system memory |
| Data Processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Target |
W/Ag/Rh(Optional) |
| Resolution |
<136eV |
| Data Transfer |
USB, Bluetooth |
| Operating Ambient Temperature |
-20℃~50℃ |
| Operating Ambient Humidity |
10%~90% relative humidity, non-condensing |
| Display |
5.7-inch absorbable color touch screen display |
| Test Time |
User customize |
| Optional |
Built-in 5 million pixel high-definition camera |
| Language |
Chinese, English, etc. |
| Air mode |
Air mode, helium mode, vacuum mode (optional) |
Advantages
One-click smart operation
The entire analysis process can be completed in just a few seconds. It is easy to use, allowing even those without technical knowledge to operate it effortlessly.
Easy customization
It offers various custom settings on a per-test basis. You can adjust test conditions according to detection needs or modify thresholds based on scanning requirements, enabling personalized scanning of different materials and elements.
Multiple data output formats
Analytical data reports can be prepared in PDF or Excel formats. When exporting data in Excel format, you can review and edit the data in detail within the table. Users can also create customized professional reports that include the company logo, company address, test results, spectrogram, and other sample information (product description, origin, batch number, etc.).
Accurate and reliable qualitative and quantitative calculations
By integrating advanced algorithms such as the super-FP algorithm and correction curve method on the front end of the PeDX Oil Analyzer, the device not only becomes faster and more accurate but also achieves greater measurement consistency.
