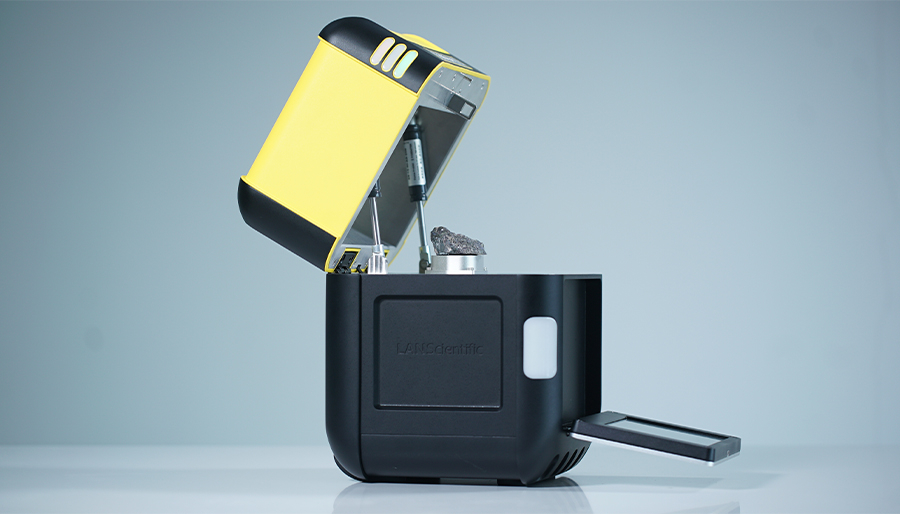

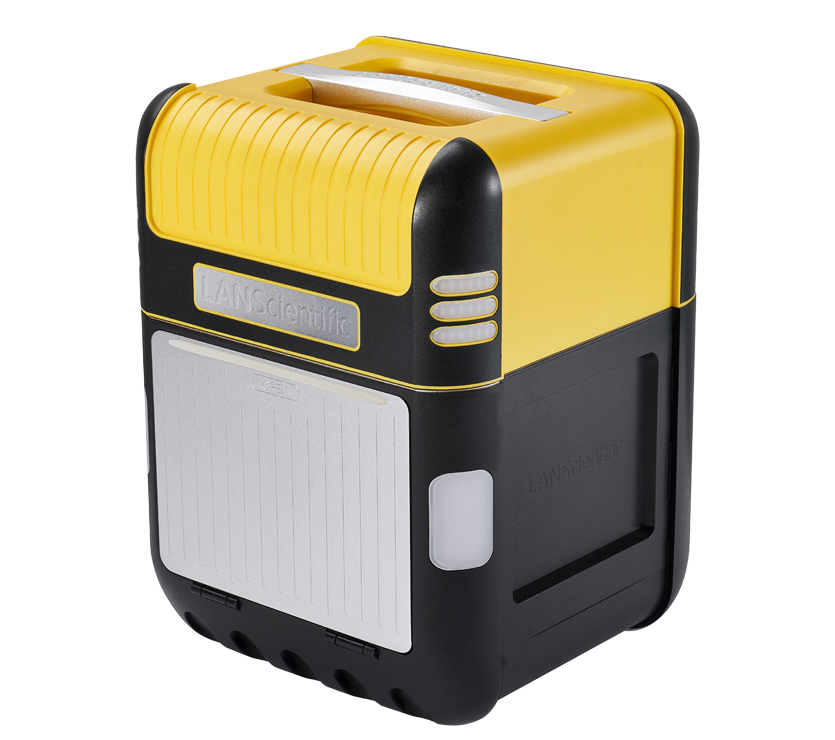

PeDX XRF Analyzer
PeDX is a portable X-ray fluorescence (XRF) analyzer designed according to users’ analysis needs. It offers advantages such as portability, fast analysis speed, good stability, and high accuracy. It is primarily used in waste recycling, environmental assessment, consumer product safety, metal materials, metal jewelry, petrochemical industry, geological and mineral exploration, and other fields, providing a basis for value judgment in product trade, processing, quality testing, safety inspection, and recycling in these areas.
Gallery
Features
Geology and Chemistry mineral exploration, ore detection
Consumer compliance and security screening RoHS compliance screening
Oil analysis: Detection of wear metal in oil
Environmental assessment soil detection, solid waste detection
Precious metal detection jewelry/precious metal identification, automobile catalyst detection
Technical Parameters
| Weight | 4.1kg |
| Size | 200×200×268mm（L×W×H） |
| Sample Room Size | 170×130×60mm（L×W×H） |
| Excitation Source | Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target(Optional) |
| Detector |
BOOST Si-pin/SDD(Optional) |
| Detection Range |
Mg—U |
| Data Processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Air mode |
Air mode、Helium mode、Vacuum mode(Optional) |
| Safety |
Built-in X-ray protection (automatic cut-off) Safety interlock, can only open the instrument under the condition of power (closed performance) Radiation indicator light |
| Resolution |
<136eV |
| Operating ambient temperature |
-20℃~50℃ |
| Operating ambient humidity |
10%~90% relative humidity, non-condensing |
| Display |
5.7-inch absorbable color touch screen display |
| Test Time |
User customize |
| Optional |
Built-in 5-megapixel HD camera |
| Language |
Chinese, English, etc. |
Advantages
One-click smart operation
The entire analysis process can be completed within just a few seconds. It is easy to use, allowing even those without technical knowledge to operate it effortlessly.
Easy customization
It offers various special settings on a per-test basis. You can adjust test conditions according to detection needs or modify thresholds based on scanning requirements, enabling personalized scanning of different materials and elements.
Multiple data output formats
Analytical data reports can be prepared in PDF or Excel formats. When exporting data in Excel format, you can review and edit the data in detail within the table. Users can also create customized professional reports that include the company logo, company address, test results, spectrogram, and other sample information (product description, origin, batch number, etc.).
Accurate and reliable qualitative and quantitative methods
By integrating advanced algorithms such as the super-FP algorithm and correction curve method on the front end of the PeDX XRF, the device not only becomes faster and more accurate but also achieves stronger measurement consistency.
