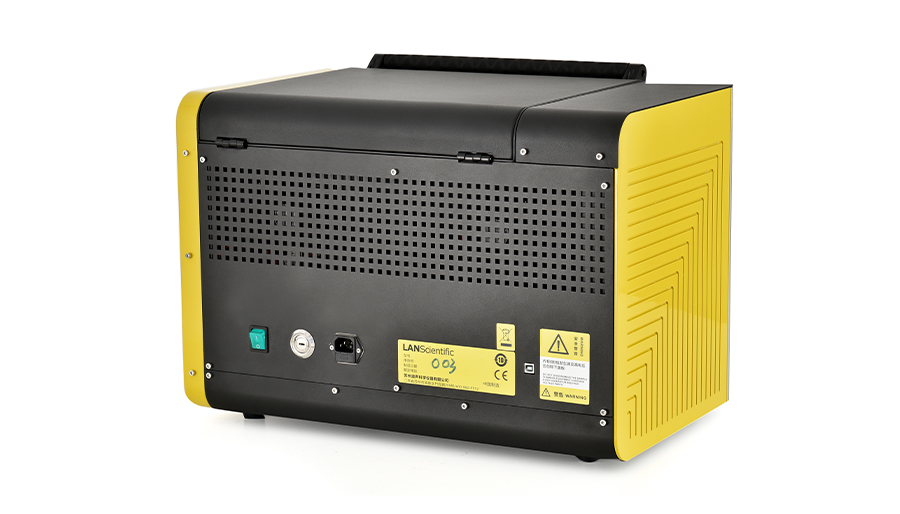

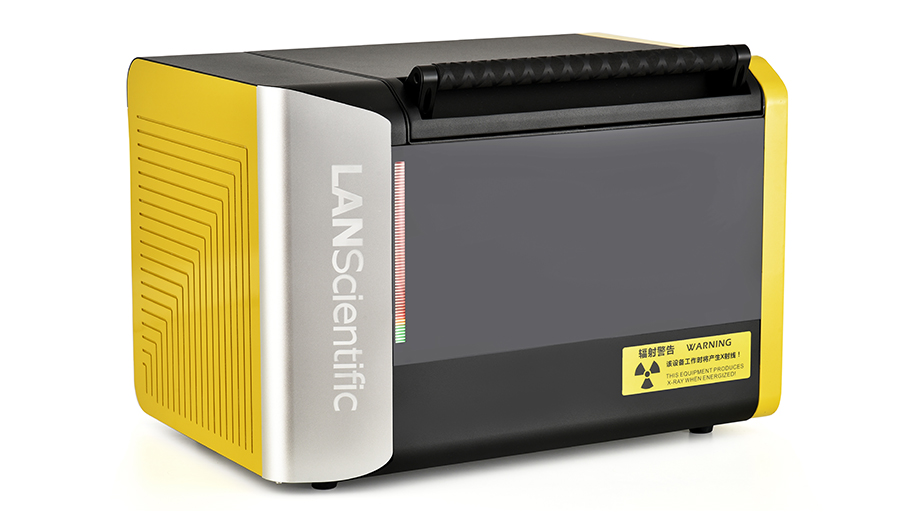

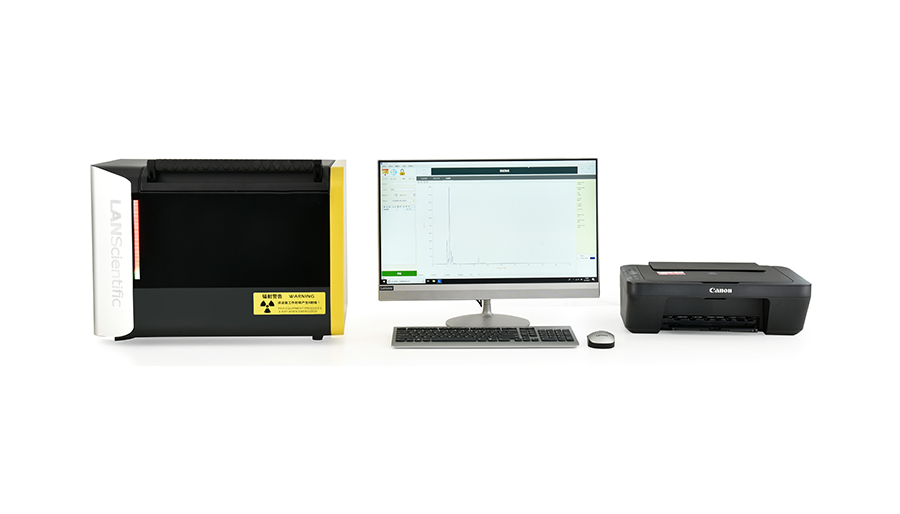

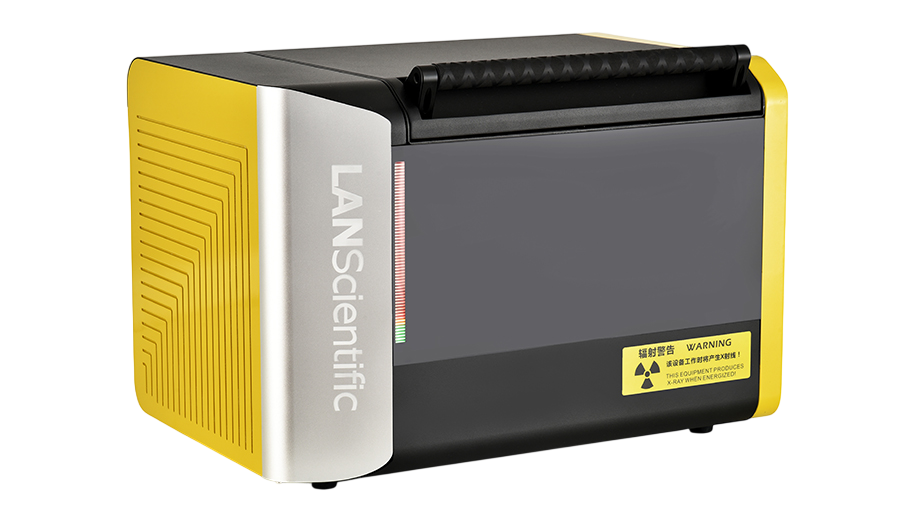

ScopeX 980 CS XRF Analyzer
The ScopeX XRF analyzer is equipped with intelligent software and high-quality hardware, offering a wide linear range, fast analysis speed, good repeatability, and high accuracy. Easy sample preparation and testability on samples of various sizes and shapes provide high sample processing capacity.
ScopeX features an intuitive user interface that can be operated easily and quickly without professional training. It is suitable for large-scale continuous analysis, process control, product quality inspection, and other applications. ScopeX is an ideal analytical tool for industries such as oil, minerals, metal materials, plastics, RoHS, and others.
Gallery
Features
Metal Material
Petrochemical industry
Environmental monitoring
RoHS/ELV
Technical Parameters
| Test object | Solid, liquid, powder |
| Range of element | F—U |
| Sample room size |
304mm×368mm×78mm（L×W×H） |
| Sample weight range | 0-2.5kg |

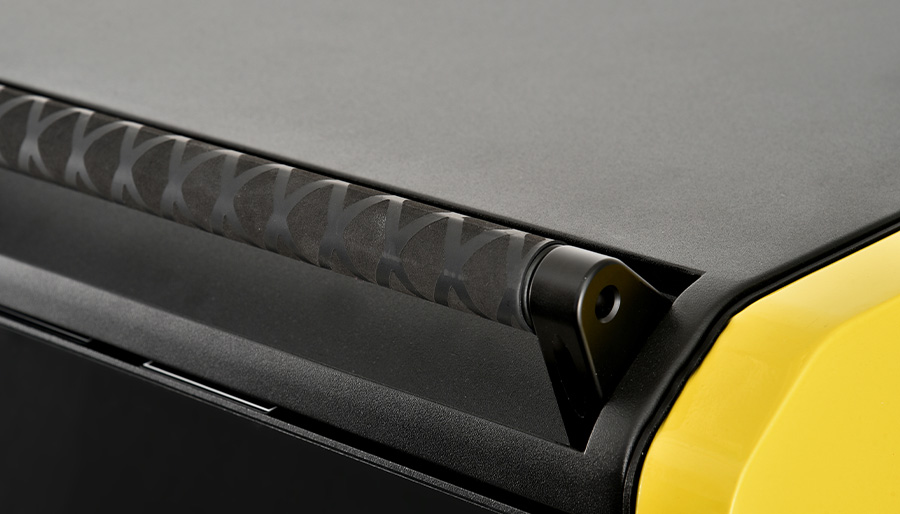

| Cover open | Automatic |
| Mainframe size | 570mm×400mm×400mm（L×W×H） |
| Mainframe weight |
64kg |
| X-ray tube | High power side window X-ray tube |
| Voltage | Up to 50kV |
| Current | Maximum 1mA |
| Cooling method | Air cooling |
| Detector | SDD |
| Sampling method | Hand sampling、Autoinjection |
| Sample observation | 5 megapixel HD industrial camera |
| PC(CPU) | CPU is I3-7100 with the same main frequency or above |
| RAM | DDR4 4 GB memory or above |
| ROM | 1TB HDD or 256GB SSD or above |
| OS | Windows 10 |
| Temperature conditions | 10°C~35°C |
| Relative humidity | 40%-70% （No condensation） |
| Power supply | 220VAC |
| Rated power |
600W |
Advantages
Performance advantage
ScopeX XRF analysis software combines the calibration curve method, fundamental parameter method (FP method), and other analytical techniques to ensure the accuracy of test data.
Non-destructive testing
The test does not damage or affect the performance of the tested objects, nor does it harm their internal structures. No damage occurs throughout the entire testing process.
Easy to manage
Thanks to hierarchical permission management, operators can log into the system with different usernames and passwords to link test reports to the relevant testing specialists. Multiple report export formats (EXCEL, PDF, etc.) and customizable report contents meet diverse data management requirements.
Safety
The test does not damage or affect the performance of the tested objects, nor does it harm their internal structure. No damage occurs throughout the entire testing process.
Easy customization
Equipped with a fully enclosed metal body and a leakage protection switch, the device features a scientific design. Radiation safety is ensured through the collaboration of software and hardware, complying with relevant regulations.
