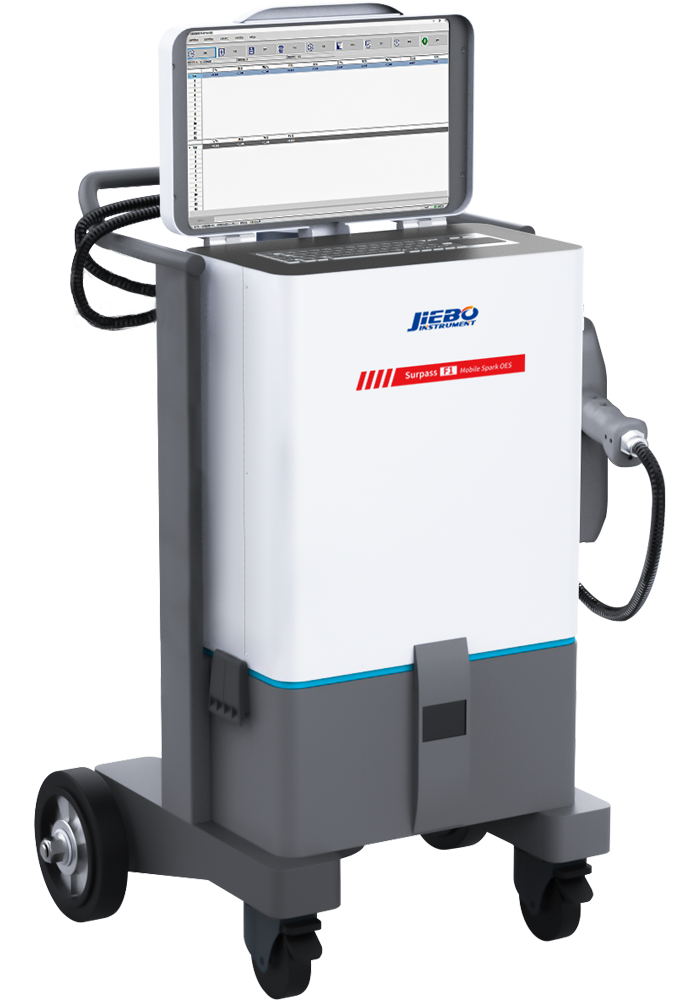

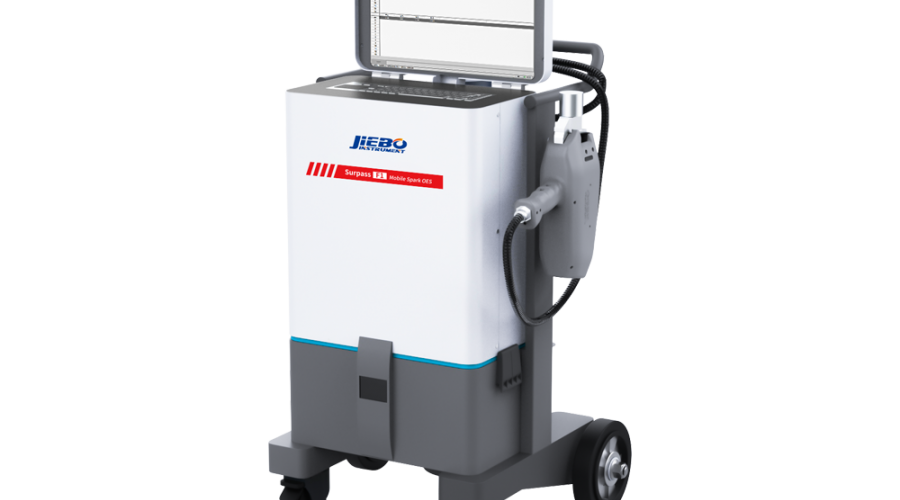

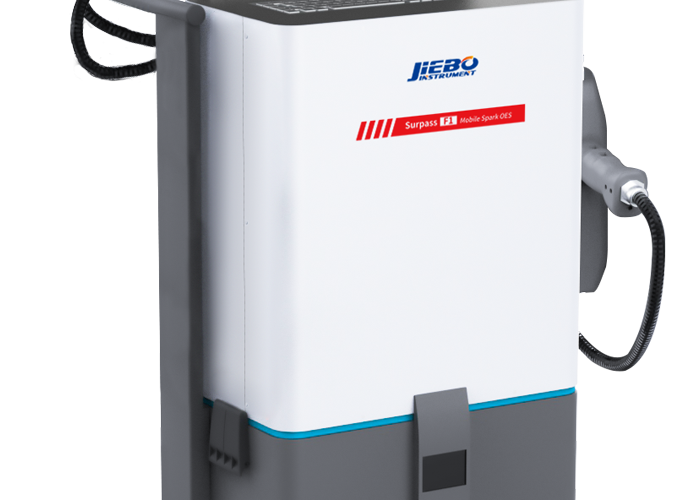

Surpass F1 Portable Optical Emission Spectrometer – Fast and Accurate On-Site Metal Device
On-site metal analysis is now much easier! The Surpass F1 Portable Optical Emission Spectrometer performs low detection limit and high stability measurements of steel and all metal alloys quickly, reliably, and directly on-site.
Providing superior accuracy in precise elemental analysis, including carbon (C), Surpass F1 becomes your most reliable solution partner in production and quality control processes. Its built-in battery allows for long-term use, while optimized argon consumption minimizes your analysis costs. Its durable design ensures seamless operation even under harsh industrial conditions.
Get reliable results on-site immediately with Surpass F1 and accelerate your production processes!
Gallery
Features
Large metal components
Automotive industry

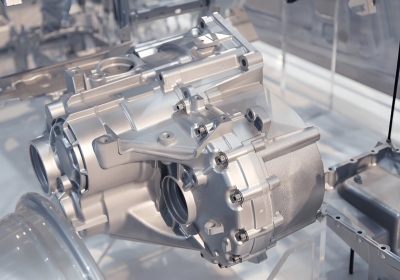

Machinery and engine industry
Technical Parameters
Technical Specifications
Optical System: Paschen–Runge arrangement
Diffraction Focal Length:
• UV: 350 mm, 2400 lines/mm
• Visible Light: 401 mm, 2400 lines/mm
Dispersion Rate: 0.7 nm/mm
Wavelength Range: 160–425 nm
UV Element Analysis: P, S, B, As, Sn, Se, N, C
Operating System: Windows 7/8/10/11 (Wi-Fi and USB connection)
Argon Requirement: >99.999 purity
Power Supply: 110/230 V, 50/60 Hz (8 hours of uninterrupted operation with a single battery)
Dimensions and Weight
Dimensions: 400 × 280 × 600 mm
Weight: 45 kg
Advantages
Versatile analysis
Special holders for samples of different shapes and sizes.
High accuracy
Specially modified optical system suitable for UV element analysis.
Optimized argon consumption
Jet electrode and cyclic argon filling technology.
Quick use
Ready for immediate measurement with a short preheating time.
Industrial durability
High resistance against vibration and electromagnetic interference.
Portable and lightweight design
Equipped with a built-in high-capacity lithium battery and an argon cylinder bracket.
