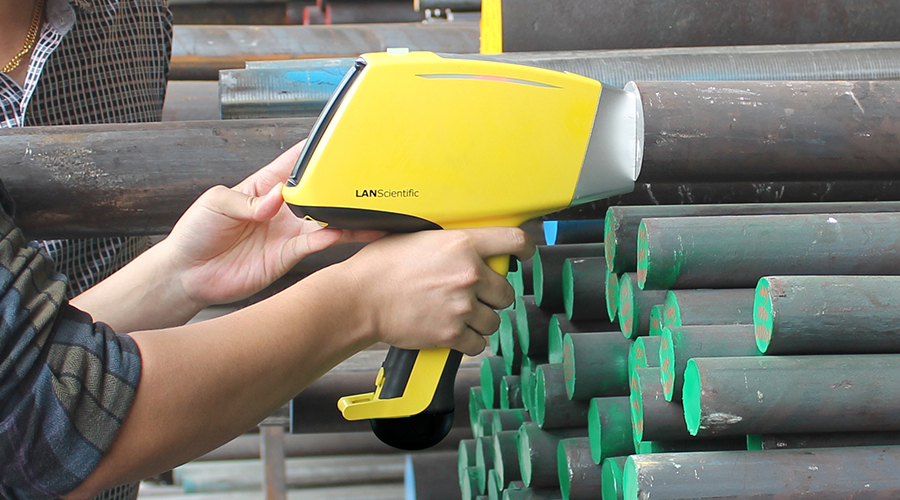

TrueX 800 XRF Analyzer – Metal Analysis Device
The Truex 800 handheld XRF metal analyzer is a powerful handheld XRF device offered by our company, distinguished by its fast detection, high durability, and ease of use. Thanks to its advanced XRF technology, it delivers analysis results in the field with accuracy comparable to laboratory measurements.
With its portable design, the Truex 800 is ideal for on-site XRF analysis and can be safely used in a variety of applications, including waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, and metal jewelry. The Truex 800 handheld XRF metal analyzer provides an effective solution for applications requiring fast and reliable elemental analysis.
Gallery
Features
Metal Materials: PMI, QA/QC, Waste Sorting, etc.
Geology and Chemistry: Mineral Exploration, Ore Detection
Precious Metal Detection: Jewelry/Precious Metal Identification, Automotive Catalyst Detection
Environmental Assessment: Soil Detection, Solid Waste Detection
Technical Parameters
| Weight | 1.5kg |
| Size | 254mm×79mm×280mm（L×W×H） |
| Detection range | Mg—U |
| Excitation source | 50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional) |
| Detector | Si-PIN detector/SDD detector |
|
Display system |
4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness |
|
Data processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Heat dissipation | The instrument is equipped with a special T-slot heat sink to improve the heat dissipation performance of the instrument, eliminating the need to frequently wait for the detector to cool down. |
| Security |
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
| Power system |
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
Advantages
High-Performance Configuration
When combined with an intelligent vacuum system, low-energy X-rays can achieve strong excitation effects on light elements such as Si, P, S, Al, and Mg. XRF technology can also be used for the analysis of key high-content elements like Cr, Ni, and Mo.
Automatic Switching of Various Collimators and Filters
Four types of collimators—5mm, 3mm, 1mm, and 0.5mm—can be automatically changed by the software along with filters, saving time and effort. This allows for the optimization of collimator and filter combinations, or detection without a filter, improving accuracy and precision.
Non-Destructive Testing
It does not damage or affect the performance of the tested object, does not harm its internal structure, and causes no damage throughout the entire testing process.
Peltier Cooling
The advanced Peltier electric cooling method eliminates the need for liquid nitrogen, reducing the complexity of equipment use and saving on labor and maintenance costs.
Data Transmission
USB, Wi-Fi, wireless Bluetooth, and other data transfer methods.
Tradition
Files can be in EXCEL, PDF, or other formats, and users can create custom test reports that include the company logo, spectrum, and other sample information.
Safety
The fully enclosed metal housing and leakage protection switch, combined with a more scientific design, coordinated software and hardware, and electromechanical connections, ensure radiation safety in compliance with national standards GB18871-2002 and GBZ115-2002.
