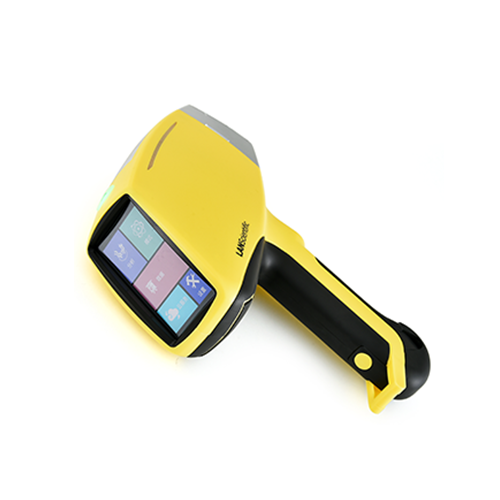

TrueX 860 Portable XRF Analyzer – Metal Analysis Device
The Truex 860 Portable XRF Metal Analyzer is a powerful handheld XRF device introduced by our company, distinguished by its fast detection capabilities, high durability, and ease of use. Thanks to its advanced XRF technology, it delivers analysis results in field conditions with accuracy comparable to laboratory measurements.

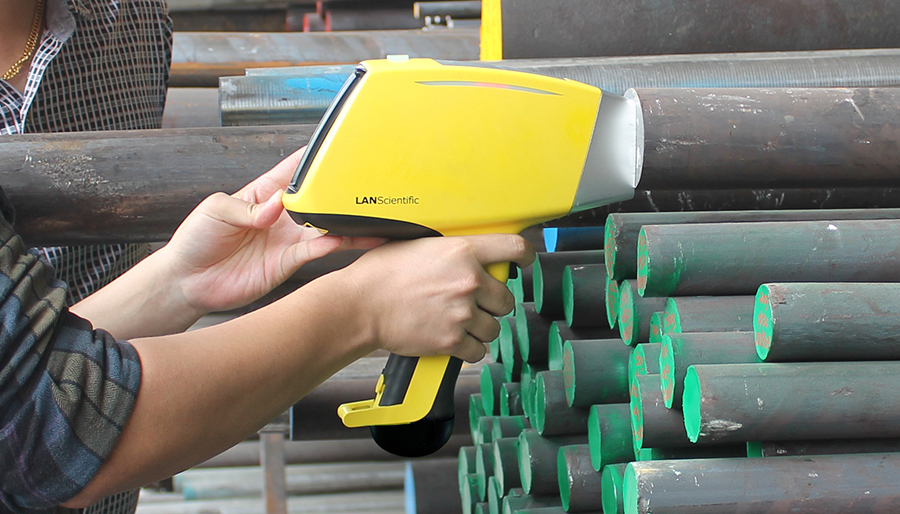

With its portable design, the Truex 860 is ideal for on-site XRF analysis and can be safely used in various applications such as scrap recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, and metal jewelry. The Truex 860 portable XRF metal analyzer provides an effective solution for applications requiring fast and reliable elemental analysis.
Gallery
Features
Metal materials: PMI, QA/QC, waste separation, etc.
Geology and Chemistry: mineral exploration, ore detection
Precious metal detection: jewelry/precious metal identification, automobile catalyst detection
Environmental assessment: soil detection, solid waste detection
Technical Parameters
| Weight | 1.5kg |
| Size | 254mm×79mm×280mm（L×W×H） |
| Excitation source | Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
| Detection Range | Mg—U |
| Display System |
4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment |
| Data Processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Heat dissipation | The instrument is equipped with a special T-slot heat sink to improve the heat dissipation performance of the instrument, eliminating the need to frequently wait for the detector to cool down. |
| Security |
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
| Power Supply System |
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
Advantages
High performance configuration
When combined with an intelligent vacuum system, low-energy X-rays can effectively excite light elements such as Si, P, S, Al, and Mg. XRF technology can be used for the analysis of important high-content elements like Cr, Ni, and Mo.
Automatic switching of various collimators and filters
Four types of collimators—5mm, 3mm, 1mm, and 0.5mm—can be automatically switched by the software along with collimators and filters, saving time and effort. The optimal combination of collimator and filter, or detection without a filter, can be improved to enhance accuracy and precision.
Non-destructive testing
It does not damage or affect the performance of the tested object, does not harm its internal structure, and causes no damage throughout the entire testing process.
Peltier cooling
The advanced Peltier electric cooling method eliminates the need for liquid nitrogen, reducing equipment complexity and saving on labor and maintenance costs.
Data transmission
USB, WiFi, wireless Bluetooth, and other data transmission methods.
Tradition
Files can be in EXCEL, PDF, and other formats, and users can create customized test reports including the company logo, spectrum, and other sample information.
Safety
Fully enclosed metal casing and leakage protection switch provide a more scientific design, coordinated software and hardware integration, electromechanical connections, and radiation safety compliant with the national standards GB18871-2002 and GBZ115-2002.
