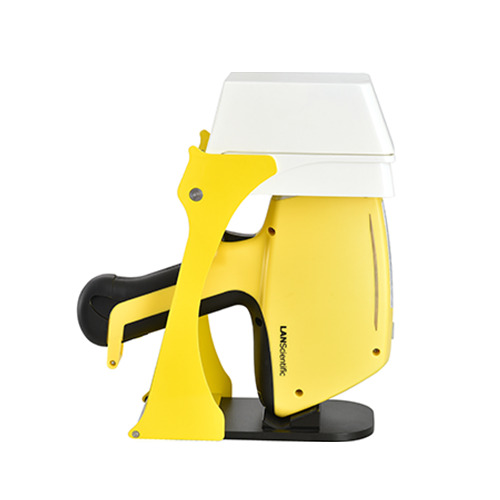

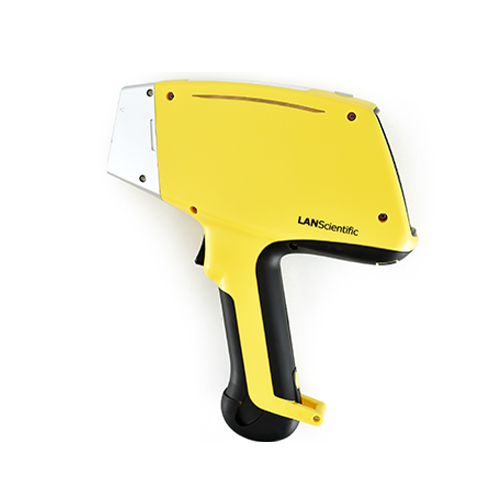

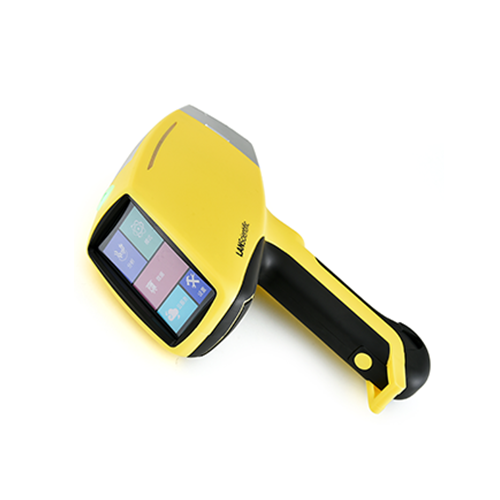

TrueX 900 Portable XRF Analyzer – Mining Analysis Device
The Truex 900 portable XRF mining analyzer brings the speed and reliability of XRF spectrometer technology to the field across all stages of mining operations. From early exploration and development studies to ore quality control during production, as well as stockpile management and environmental monitoring, it provides instant and accurate elemental analysis using a portable XRF spectrometer. The Truex 900 portable XRF spectrometer enables real-time analysis in the field with little to no sample preparation.
Compared to traditional laboratory methods, sample density in XRF spectrometer analysis increases significantly; more measurements result in higher data quality and more reliable outcomes. With the Truex 900 portable XRF mining analyzer, analysis processes are accelerated, operational uncertainties are reduced, and decision-making is strengthened through XRF data.
The Truex 900 portable XRF mining analyzer offers a powerful and portable solution that transforms XRF spectrometer technology into profitability by saving time, labor, and reducing uncertainties in operational processes.
Gallery
Features
Slag Recycling

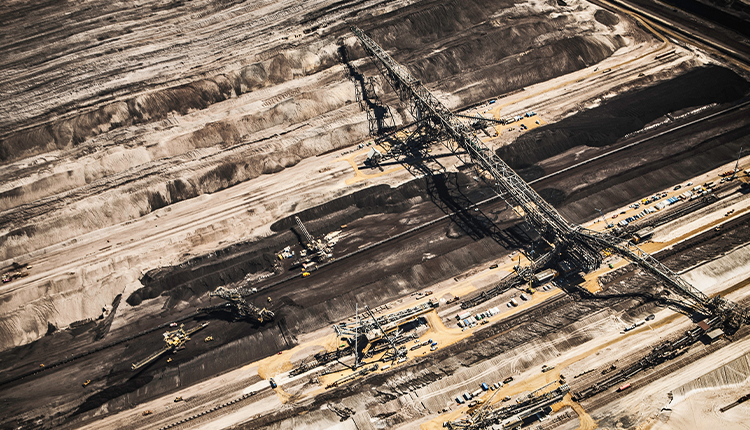

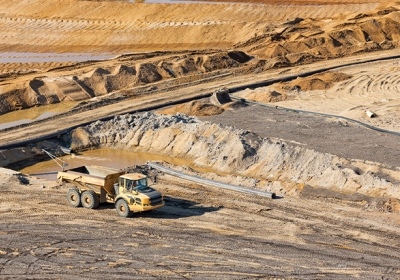

Mining Exploration

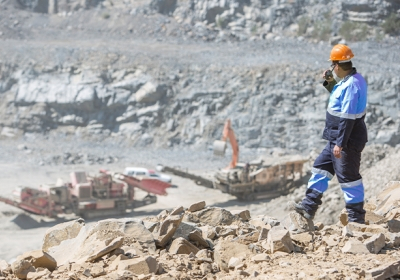

Analysis of Mineral Processing Grade in Geological Exploration
Technical Parameters
| Weight | 1.5kg |
| Size | 254mm×79mm×280mm（L×W×H） |
| Detection range | Mg—U |
| Excitation source | 50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional) |
| Detector | Si-PIN detector/SDD detector |
|
Display system |
4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness |
|
Data processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Heat dissipation | The instrument is equipped with a special T-slot heat sink to improve the heat dissipation performance of the instrument, eliminating the need to frequently wait for the detector to cool down. |
| Security |
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
| Power system |
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
Advantages
Portable
The instrument is compact and lightweight, making it easy to carry.
Industrial Resistive Touchscreen
The 4.3-inch industrial resistive touchscreen offers better backlight performance compared to capacitive screens, ensuring clear visibility even under strong outdoor light. It also eliminates the need to remove gloves in specialized field environments.
User-Defined
Users can create customized professional reports that include the company logo, company address, test results, spectrograph, and other sample information (such as product description, origin, batch number, etc.).
High Accuracy
Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, enable the TrueX handheld ore analyzer to achieve superior analytical accuracy.
GPS System
The built-in GPS can combine latitude, longitude, and elevation data, and by importing into third-party GIS analysis software, it can generate a 3D geographic distribution map of elemental content, enabling rapid assessment of mineral reserves or geological hazard areas.
