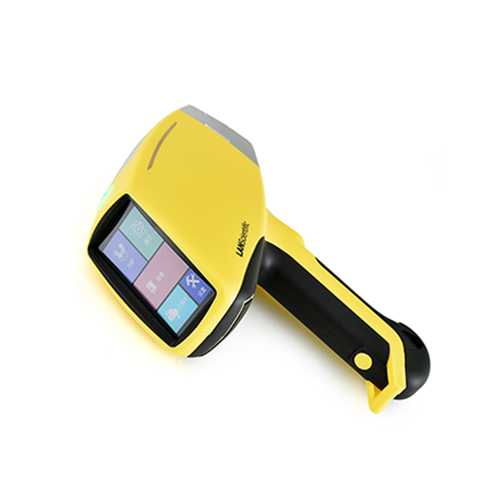

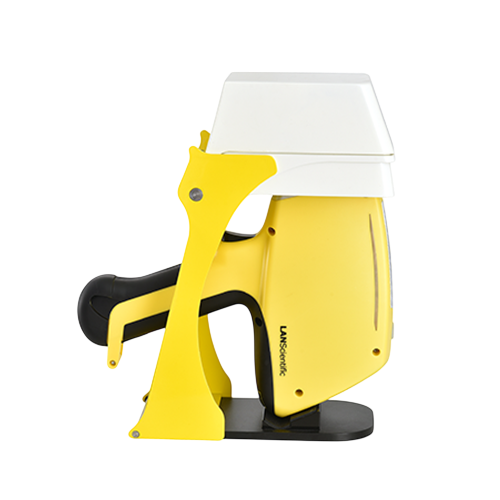

TrueX 960 Portable XRF Analyzer – Mining Analysis Device
The Truex 960 portable handheld XRF mining analyzer brings the speed and reliability of XRF technology directly to the field across all stages of mining operations. From early exploration and development studies to ore quality control during production, as well as stockpile management and environmental monitoring, it delivers instant and accurate elemental analysis using XRF. The Truex 960 portable handheld XRF enables real-time mining analysis in the field with little to no sample preparation.
Compared to traditional laboratory methods, sample density in XRF mining analysis increases significantly; more measurements lead to higher data quality and more reliable results. With the Truex 960 portable handheld XRF, analysis processes are accelerated, operational uncertainties are reduced, and decision-making is strengthened with XRF data.
The Truex 960 portable handheld XRF mining analyzer offers a solution that transforms XRF technology into profitability by saving time, labor, and operational costs.
Gallery
Features
Slag reuse
Mineral exploration
Analysis of the degree of mineral processing in geological exploration
Technical Parameters
| Weight | 1.5kg |
|
Size |
254mm x 79mm x 280 mm (L x W x H) |
| Excitation source | 550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional) |
| Detector |
Si-Pin/SDD |
| Detection range | Mg—U |
| Display system |
4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness |
| Data processing |
32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Heat dissipation | The instrument is equipped with a special T-slot heat sink to improve the heat dissipation performance of the instrument, eliminating the need to frequently wait for the detector to cool down. |
| Security |
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific safety rope |
| Power system |
Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations A single battery can work for about 8 hours |
| Language | Chinese, English, etc. |
Advantages
Portable
Since the instrument is smaller in size and lighter, it is easy to transport.
Industrial resistive touch screen
Industrial-grade rugged touch screen
User defined
Users can create customized professional reports including company logo, company address, test results, spectrograph, and other sample information (product description, origin, batch number, etc.).
High sensitivity
Imported high-performance X-ray tubes and high-resolution detectors combined with digital multi-channel processing technology bring the TrueX handheld ore analyzer to a higher level of analytical accuracy.
GPS system
It can integrate built-in GPS latitude and longitude data with altitude information, and by importing third-party GIS analysis software, create a three-dimensional geographic distribution map of element content, enabling rapid assessment of mineral reserves or geological hazard areas.
