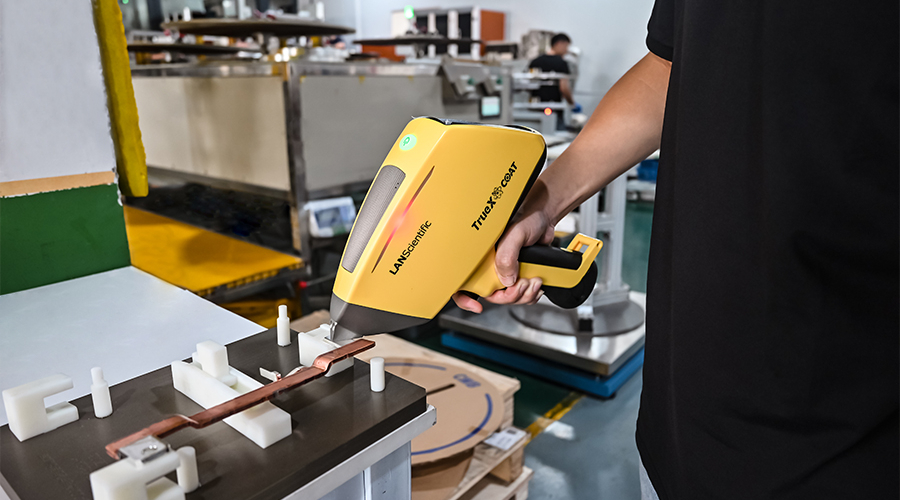

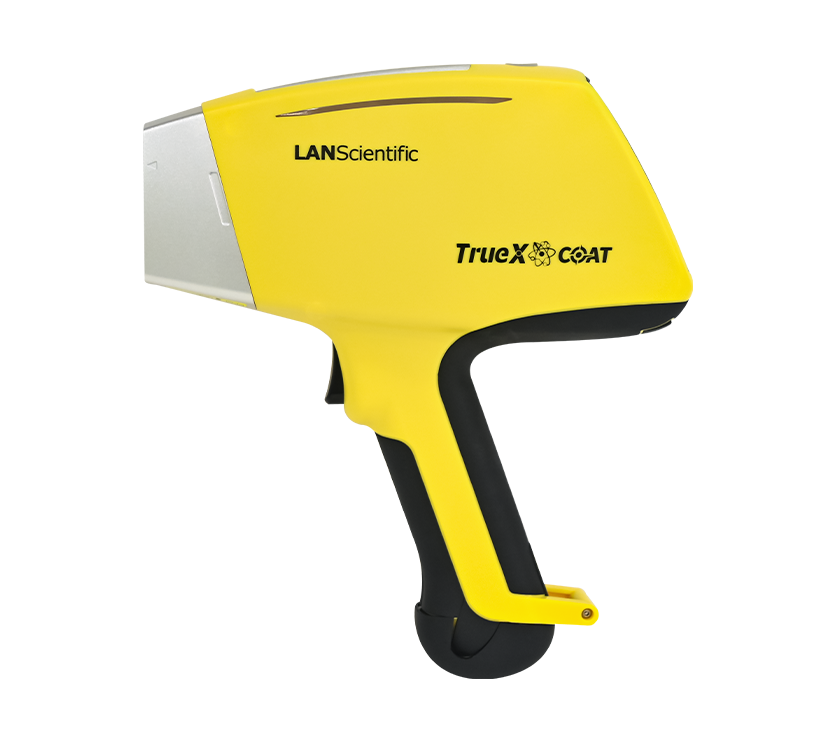

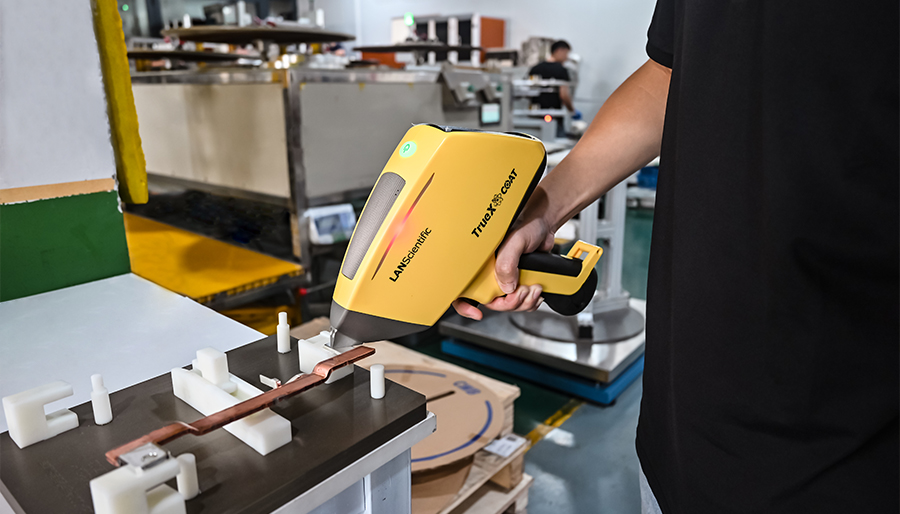

TrueX COAT Coating Analyzer
The TrueX COAT coating thickness measurement device, designed by LANScientific Co., LTD., is a handheld XRF instrument with excellent performance based on many years of research and development experience in XRF technology and integration of coating market demands. TrueX COAT is suitable for coating thickness measurement and material analysis with the advantages of being non-destructive, reliable, highly efficient, and highly flexible.
In addition to qualitative analysis of the elemental composition of samples, it can also be used for measuring the thickness of coatings and coating systems. It is widely used in functional coating bath concentration analysis in industries such as printed circuit boards, semiconductors, electroplating, metal products, automotive parts, plumbing, jewelry, and others.
Gallery
Features
Hardware and construction materials industry
Jewelry and watches

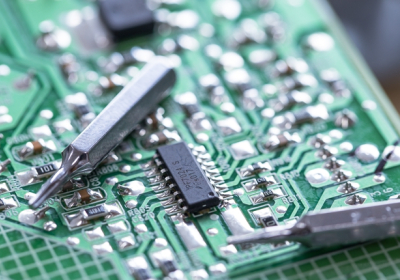

Precision electronics, 5G industry
Automotive and decoration industries

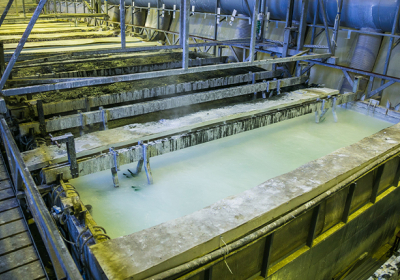

Plating bath solution, Metal content in electroplating wastewater
Technical Parameters
| Weight | 1.5kg |
| Size | 254mm ×79mm ×280mm（L×W×H） |
| Excitation source | Up to 50kV/200μA, voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
| Detection range | Mg—U |
| Detector | BOOST Si-Pin、SDD(optional) |
| Display system |
4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment |
| Data processing |
Built-in 32GB storage USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument |
| Security |
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
| Power supply system |
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations |
Advantages
Industrial rugged touchscreen
Compared to a capacitive screen, the 4.3-inch industrial rugged touchscreen offers better backlight performance, remains clearly visible even under strong sunlight in the field, and eliminates the need to remove gloves in special outdoor environments.
Easy Transport
The instrument is smaller and lighter in size, making it easy to transport.
High performance configuration
High-speed processing chips, advanced algorithms, and efficient software work together to make device analysis faster.
customized by user
Users can generate customized professional reports including the company logo, company address, test results, spectrogram, and other sample information (such as product description, origin, batch number, etc.).
High quality detector
The device is suitable for multi-element detector analysis, features low noise, and is flexible in handling coating structures.
