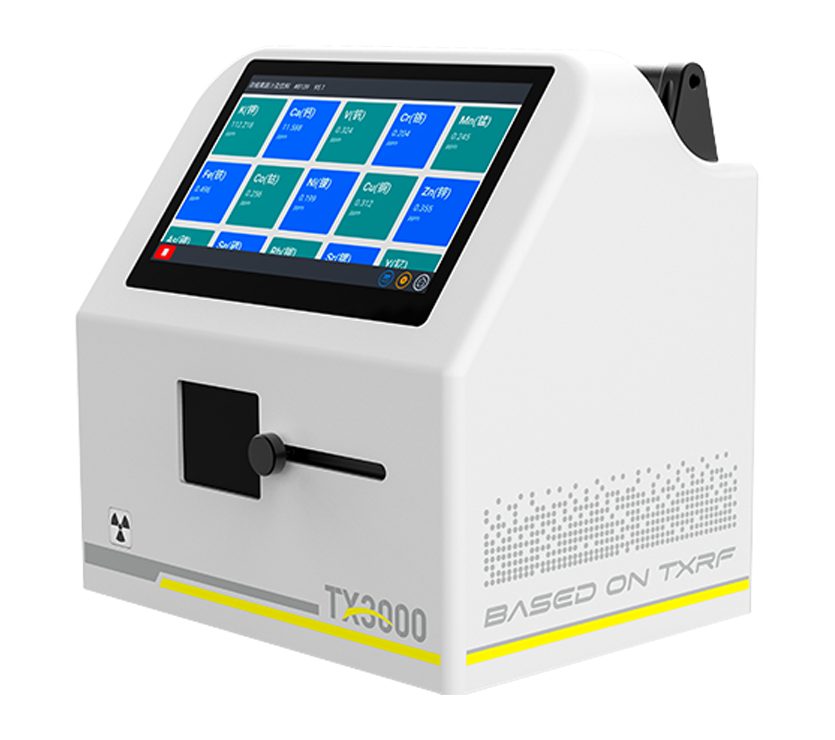

TX3000 Total Reflection X-ray Fluorescence Spectrometer
The TX3000 Total Reflection X-Ray Fluorescence Spectrometer is a portable device specially designed and developed for elemental and trace analysis following years of research on XRF technology. It delivers high-sensitivity detection under an ultra-low noise background and rapidly performs multi-element trace analysis on liquids, suspensions, solids, and contaminants, providing a highly efficient and precise solution in the field of trace element analysis.
Compact and easy to transport, the TX3000 is ideal for on-site analysis and mobile laboratory applications. Featuring simple sample preparation, high performance, user-friendly operation, environmental protection, and cost-effectiveness, this device serves as a powerful analytical tool in scientific research, quality control, and environmental monitoring.
Gallery
Features
Geology/Metallurgy: can be used in mineral exploration and evaluation, geological research, and sedimentary environment studies.
Cosmetics: ensures that products comply with relevant laws and regulations by detecting the content of lead, mercury, arsenic, and other heavy metals, as well as other potentially harmful elements in cosmetics.
Forensic Science It can be used to detect trace elements such as hair, fibers, and dust in samples collected from crime scenes, provide clues for case investigation, detect toxic components and accumulations in biological samples, and support forensic toxicology research.
Environmental science: can effectively detect trace pollutants in soil, air, and water, providing a scientific basis for assessing and managing environmental quality.
Food safety: TXRF is used to detect trace elements and heavy metals in foods and beverages, helping to prevent potential risks and ensure food safety and quality standards.
Cultural heritage: Drug analysis, Biological sample detection, Process optimization
Technical Parameters
| Size | 360mm x 265mm x 365mm ( LxWxH ) |
| Weight | ≤15kg（without battey ） |
| Core Technology | Total reflection X-ray fluorescence (TXRF) |
| Element Range | Mg—U |
| Concentration Range |
30ppb to 100ppm |
| Sample Types |
Liquids, suspensions, powders, particles, metals,etc. |
| Sample volume | Liquids and suspensions from 1 µl to 50 µl
Particles up to 100 µm in diameter, powders up to 10 µg |
| Sample carrier |
Glass carriers |
| X-ray tube |
High brightness micro-focus fixed target light source |
| Optical system | Vacuum orthogonal back-to-back X-ray artificial multilayer reflective focusing mirror |
| Detector | 20mm2 large area SDD detector |
| Data Display System | Integrated instrument with built-in display, super large industrial-grade capacitive screen |
| Accessories(option) |
Bluetooth printer,Pipette,Sampling tube, Heating dryer, Internal standard liquid,etc. |
Advantages
Analysis of extremely small amounts of samples at the Ng-μg level
This method requires only a very small amount of sample for accurate analysis, making it ideal for use in situations where sample volume is limited.
Simultaneous analysis of multiple elements
The device can simultaneously detect eight major heavy metal elements such as chromium and lead. Additionally, it can expand the range of elements based on detection needs and analyze approximately 30 elements, significantly saving analysis time.
LOD is as low as ppb level
Surpassing the detection limits of traditional XRF to unlock endless possibilities for trace element analysis.
Low background noise
The X-ray beam illuminates the sample at a grazing angle, which reduces scattering and fluorescent background, resulting in lower background noise and decreasing the detection limit by several orders of magnitude.
Low operating costs
Domestic TXRF systems are generally more cost-effective compared to imported equipment. They are designed for low-energy operation, require smaller sample volumes, reduce the need for expensive reagents and standards, and are highly economical since the sample dissolution process does not require equipment or hazardous chemicals.
One-click smart operation
Equipped with a user-friendly interface, it is simple and intuitive to use, allowing even non-professionals to operate it with ease.
Only 2 minutes processing time
The processing time is only 2 minutes and requires no calibration or digestion, providing great convenience and efficiency for on-site analysis.
Environmentally friendly
Compared to traditional X-ray fluorescence spectrometers, TXRF uses a specialized geometric configuration to effectively reduce radiation exposure risk and better ensure operator safety.
Localized service
Local manufacturers can provide faster after-sales service and technical support to ensure timely resolution of issues users encounter during operation.
