TX3800 Total Reflection X-ray Fluorescence Spectrometer
The TX3800 Portable Total Reflection X-ray Fluorescence Spectrometer is designed for precise detection. It provides high-sensitivity measurements under extremely low background noise. It rapidly completes qualitative and quantitative analysis of trace elements in liquids, suspensions, solids, and contaminant samples, offering users efficient and reliable analytical methods along with high-performance solutions in trace element analysis.
With simple sample preparation, excellent performance, ease of use, environmental protection, energy saving, and economic efficiency, the TX3800 has become an ideal analytical tool in environmental monitoring, scientific research, quality control, and similar fields. The device features a compact, lightweight design that is easy to carry and transport. It is especially suitable for on-site analysis or mobile laboratory applications and effectively helps users tackle complex analytical challenges.
-
High-performance hardware for more accurate and reliable detection
-
Extremely low detection limits, leaving no trace element undetected
-
Compact and portable design for easy field use
-
Low operating costs, maintenance-free, worry-free, and labor-saving
-
Multi-element simultaneous analysis for efficient and accurate one-step testing
Gallery
Features
Materials science: can be used for trace element detection in alloys, ceramics, glass, and other materials, as well as for surface quality control of silicon wafers in the semiconductor industry.
Environmental science: can effectively detect trace pollutants in soil, air, and water, providing a scientific basis for the assessment and management of environmental quality.
Forensic science: used for the analysis of trace elements and toxic components in crime scene samples to provide clues and support forensic toxicology investigations.
Geology/metallurgy: can be used in mineral exploration and evaluation, geological research, and sedimentary environment studies.
Cultural Heritage; Drug composition analysis, Biological sample identification, Process optimization
<ul> <li>Controls trace elements and metal impurities in pharmaceuticals.</li> <li>Used for the analysis of trace elements and heavy metals in blood and urine.</li> <li>Provides pharmaceutical quality control from raw materials to finished products.</li> </ul>
Cosmetics: ensures that products comply with relevant laws and regulations by detecting the content of lead, mercury, arsenic, and other heavy metals, as well as other potentially harmful elements in cosmetics.
Biomedical/biopharmaceuticals: can be used for elemental detection in beverages and foods to ensure food safety. Analysis of trace elements in food.
Technical Parameters
| Size | 330mm x 230mm x 305mm（L×W×H） |
| Weight | ≤11kg（without battey ） |
| Core Technology | Total reflection X-ray fluorescence (TXRF) |
| Element Range | Mg—U |
| Content Range |
0.1ppb-100ppm |
| Sample Types |
Liquids, suspensions, powders, particles, metals,etc. |
| Sample volume | Liquids and suspensions from 1 µl to 50 µl
Particles up to 100 µm in diameter, powders up to 10 µg |
| Sample carrier |
Glass carriers |
| X-ray tube |
High brightness micro-focus fixed target light source |
| Optical system | Vacuum orthogonal back-to-back X-ray artificial multilayer reflective focusing mirror |
| Detector | 65mm2 large area SDD detector |
| Data Display System | Integrated instrument with built-in display, super large industrial-grade capacitive screen |
| Accessories(option) |
Bluetooth printer,Pipette,Sampling tube, Heating dryer, Internal standard liquid,etc. |
Advantages
Get fast processing in minutes
Fast processing in 120 seconds! No calibration or digestion required—transition from "laboratory-only" analysis to an easy "anytime, anywhere" experience!
Detection accuracy reaches ppb level
The device surpasses the detection limits of traditional XRF with detection levels as low as ppb, unlocking endless possibilities for trace element analysis.
One-button smart operation
The device features an intelligent "one-click" design that combines intuitive use with minimal sample preparation. Even users without technical expertise can operate the device effortlessly and achieve fast, precise detections with consistent reliability across various applications.
High-performance wide-area detector
The use of an ultra-wide area detector significantly enhances detection sensitivity and spectral resolution, enabling accurate capture of weak signals. It is suitable for trace element analysis and the high-sensitivity detection of complex samples, helping to achieve efficient and reliable analytical results.
Analysis of extremely small amounts of samples at the μL/ng level
This technology enables precise measurements even for rare or valuable samples by using micro-volume analysis (at μL/ng levels) instead of bulk samples. It simplifies the sample collection and preservation process while maintaining integrity and maximizing research value with minimal material consumption.
Simultaneous analysis of multiple elements
The device can simultaneously detect eight major heavy metal elements such as chromium and lead. Additionally, it can expand the range of elements according to detection needs and analyze approximately 30 elements, significantly saving analysis time.
Localization Services
Local manufacturers provide faster after-sales service and technical support to ensure timely resolution of issues encountered by users during operation.
Lightweight and portable
Thanks to its compact size and lightweight design, it is easy to carry and transport, making it perfectly suited for on-site testing and mobile laboratory needs, ensuring accurate analyses are always accessible anytime and anywhere.
Environmentally friendly
Compared to traditional X-ray fluorescence spectrometers, TXRF features a specialized geometric configuration that effectively reduces radiation exposure risk, provides higher safety protection for operators, and makes testing procedures more worry-free.
Low background noise

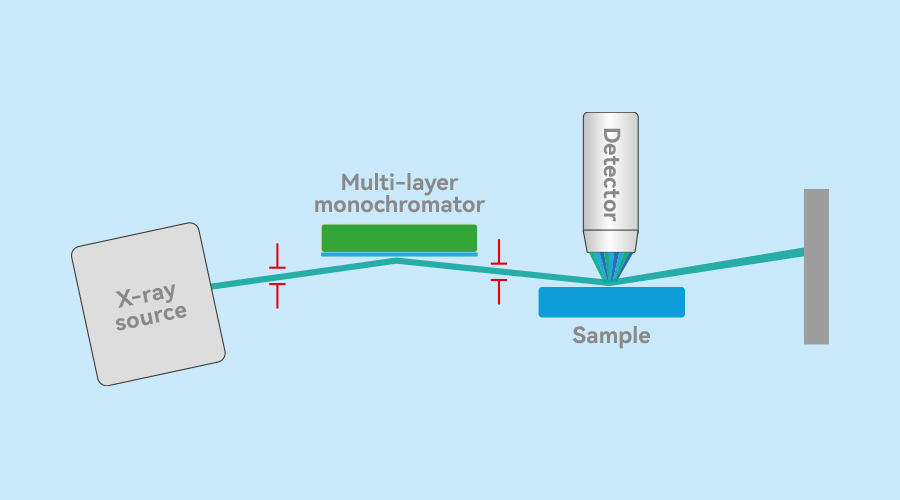

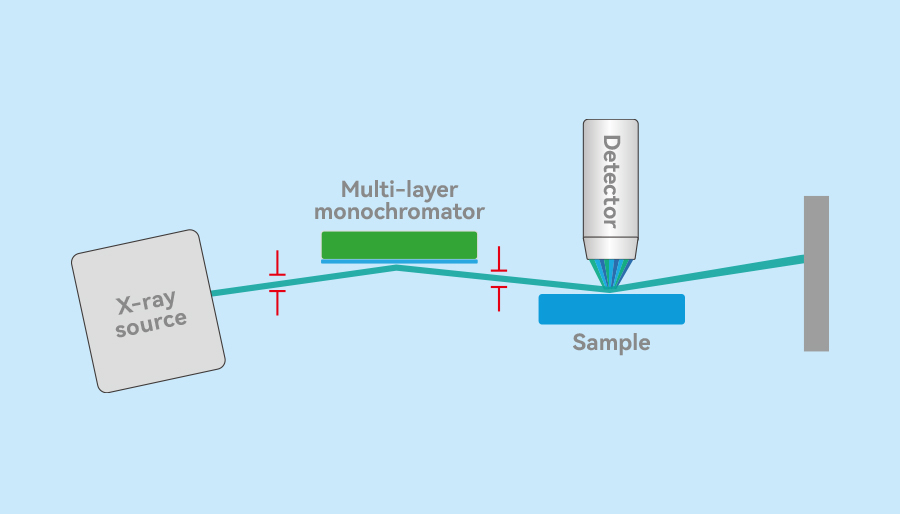

The X-ray beam illuminates the sample at a grazing angle, reducing scattering and fluorescent background, resulting in lower background noise and lowering the detection limit by several orders of magnitude.
Low cost operation
Domestic TXRF systems offer superior cost efficiency compared to imported products by featuring low-energy, trace sample detection capabilities that eliminate complex pre-processing and minimize reagent usage. Their ultra-low operating costs provide exceptional economic benefits.
