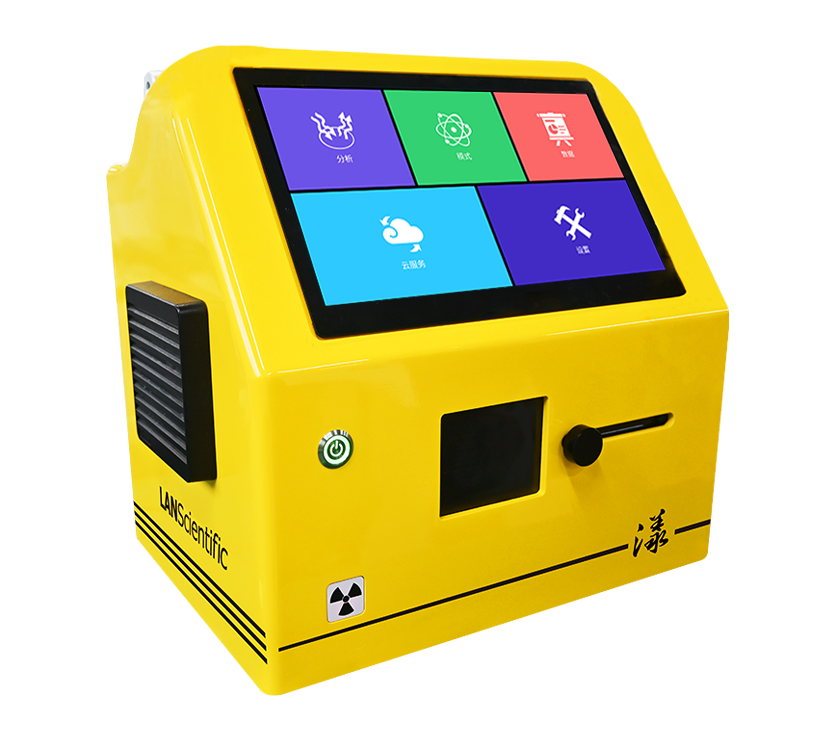

YANG ppb Level Trace X-Ray Fluorescence Spectrometer
The YANG 700W portable ppb-level trace X-ray fluorescence spectrometer is an analytical device launched by LANScientific Co., Ltd. It utilizes X-ray fluorescence technology and is equipped with multi-surface continuously curved crystals to effectively reduce scattering background interference. This ensures that the characteristic lines of the elements under test are clearly identified with extremely low background noise. The excited fluorescent X-rays are captured by high-resolution, high-sensitivity detectors to achieve precise and accurate test results.
The YANG 700W is compact, portable, easy to use, fast, accurate, safe, and reliable, with simple sample preparation requirements. It can quickly perform quantitative and semi-quantitative multi-element trace analysis on liquids, suspensions, solids, and contaminants. Thanks to its flexibility, it is widely used both in the field and laboratory settings across many areas including materials science, environmental testing, biomedical applications, geological exploration, and scientific research.
Gallery
Features
Toxicity analysis in blood and urine
Geological analysis
Analysis of trace elements in foods
Determination of heavy metal concentration in industrial wastewater and surface water
Analysis of trace elements in biomedicine
Technical Parameters
| Size | 360mm x 265mm x 365mm ( LxWxH ) |
| Weight | 18kg |
| Excitation source | Water-cooled X-ray tube |
| X-ray Tube Voltage | 50kV max, X-ray radiation dose rate <0.2μSv/h |
| X-ray Tube Power |
50W max, adjustable from 0-50W |
| Crystal | Multi-surface continuously curved crystal |
| Detector |
50mm2 large area SDD detector |
| Concentration Range |
2ppb-100ppm(slightly different of each elements) |
| Element range | Mg—U |
| Battery | Equipped with lithium battery. support continuously test more than 50 samples. Support charging with adapter when used in lab. |
| Working temperature | -20℃~50℃ |
| Working humidity |
20%~90%RH |
| Data output |
USB, Bluetooth |
| Measuring time | 30~600S |
| Resolution |
optimal125 ev |
| Data display system |
Chinese, English, etc. Multiple languages available |
| System processor |
DQuad-core 64-bit Cortex-A55, up to 2.0 GHz Dedicated analysis operating system 80MHz ADC digital pulse processor 4096 MCA channels, 32G memory |
Advantages
Portable and easy to use
The integrated design portable testing platform can be used for both field testing and laboratory analyses, featuring one-touch testing and simple operation, freely applicable for laboratory/field scientific research.
Simultaneous analysis of multiple elements
The device can simultaneously detect eight major heavy metal elements such as chromium and lead. Additionally, it can expand the elements according to detection needs and analyze approximately 30 elements, significantly saving analysis time.
Good Compatibility
The device, specially developed for rapid on-site analysis, is resistant to fog, dust, and vibration, and can adapt to harsh working environments.
Personalized settings
Depending on the test, various customized settings are provided. Test conditions can be adjusted according to testing requirements, and the threshold value can be set based on scanning needs. This allows for personalized scanning of different materials and elements.
Simple sample preparation
There is no need for simple sample preparation or complex pretreatment processes. The device uses an integrated sample container and sample film that do not need to be manually handled in the field, preventing errors and sample contamination during the preparation process.
Cloud service
The device is equipped with a mobile APP service that can be controlled simultaneously. The mobile APP service can operate, transmit, and manage data, labels, and other information, thereby facilitating the sharing of system data.
