Coating Thickness Analysis with the ScopeX PILOT XRF Device
Coating thickness analysis has become an essential factor in the quality control of the processing industry and surface engineering. It is a necessary tool for verifying whether products meet quality standards. To internationalize products, there are clear requirements regarding coating thickness for China's export products and overseas projects.

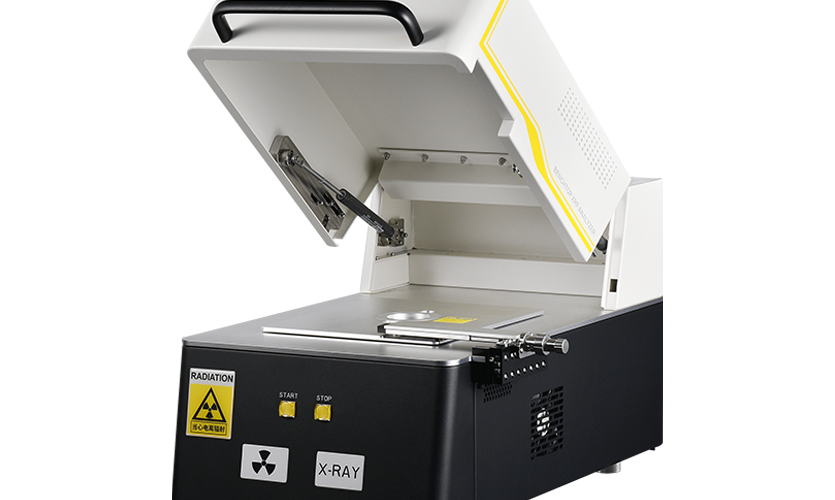

ScopeX PILOT adopts a top-down analysis design and is equipped with advanced Multi-FP algorithm software, micro light-collection technology, and a high-precision zoom distance measurement device. It can perform fast, accurate, and non-destructive tests on uneven, irregular, and small samples.
It can easily handle challenging tasks such as surface processing process control, product quality inspection, and scanning in the field of coatings. ScopeX PILOT is widely used in jewelry, electroplating industry, automotive industry, hardware and sanitary ware, aerospace, electronic semiconductors, and other fields.
Gallery
Features
Auto Parts
Small hardware parts

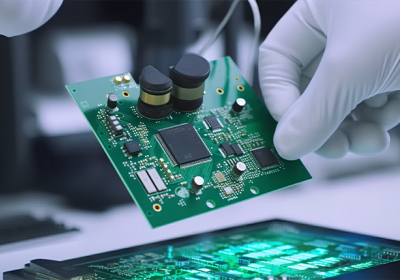

Printed Circuit Boards
Fasteners
Technical Parameters
| Range of element | Al(13)-Fm(100) |
| Analysis of the layer number of | 5 layers (4 layers + substrate) each layer can analyze 10 elements, composition analysis can analyze up to 25 elements |
| X-Ray tube | 50 W (50 kV, 1mA) micro-focused tungsten palladium ray tube (target material is optional) |
| The detector | Si-Pin detector，high sensitivity SDD detector(optional) |
| Collimator | Φ0.1-Φ3optional |
| The camera | High resolution CMOS color camera, 5 megapixels |
| Manual sample XY platform | Moving range：50mm x 50mm |
| Filter | Fixed primary filter, multi-filter(optional) |
| Sample room size | 320mm × 480mm × 130mm（W×D×H） |
| Dimension | 330mm × 580mm × 360mm（W×D×H） |
| Weight | 40kg |
| Power supply | AC 220V±5V 50Hz(The configuration varies slightly by region) |
| Rated power | 150W |
Advantages
Optional microfocal X-Ray device
The ability to easily and accurately analyze various small samples.
Multiple collimators / filters
Multiple filters and collimators are optional or can be automatically switched to the optimal combination by the software, which significantly enhances the device's versatility in flexibly analyzing parts of different sizes.
Design from above
Perform measurements from bottom to top without special focusing. Ensure efficient measurement of coating samples.
NDT (Non-Destructive Testing)
XRF analysis does not damage samples, making it safe even for sensitive materials.
zoom device
Various specially shaped concave parts can be tested. The groove depth measurement range can reach up to 0 to 30 mm.

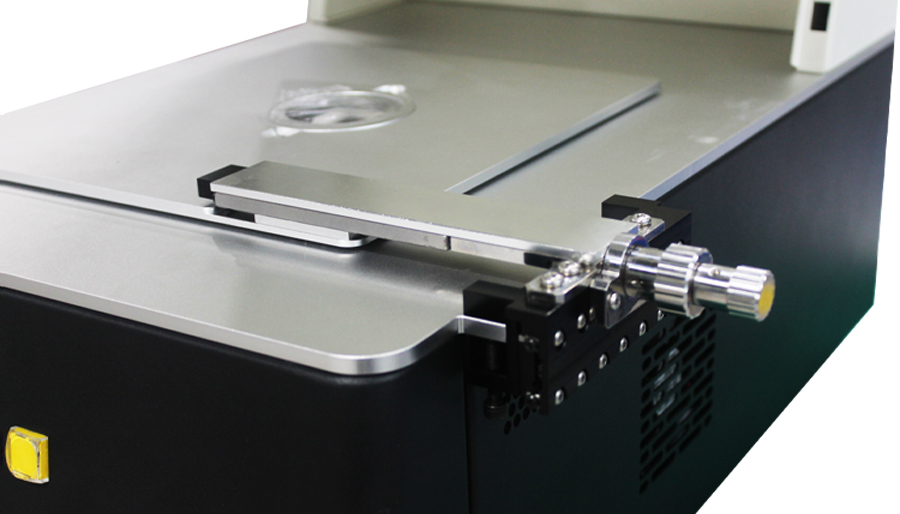

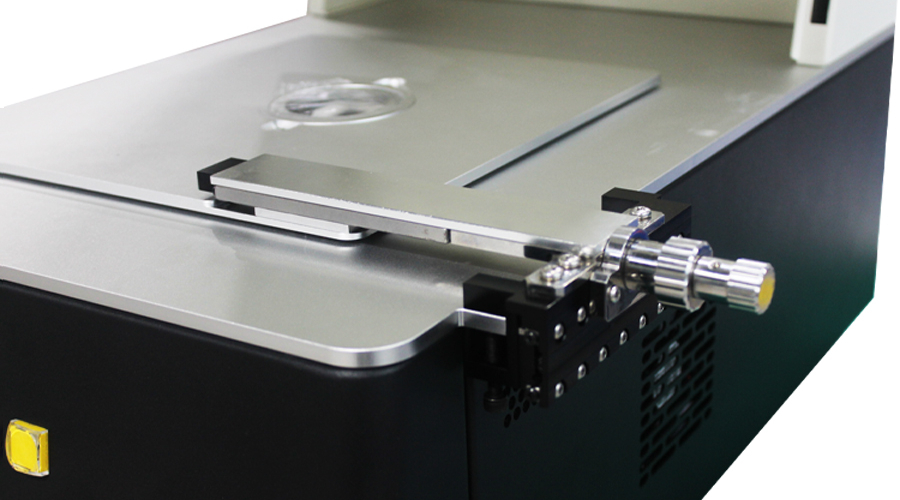

High precision manual XY platform
It is equipped with a high-precision manual XY stage that makes micro-area measurement easier and achieves an accuracy of up to 25 μm.

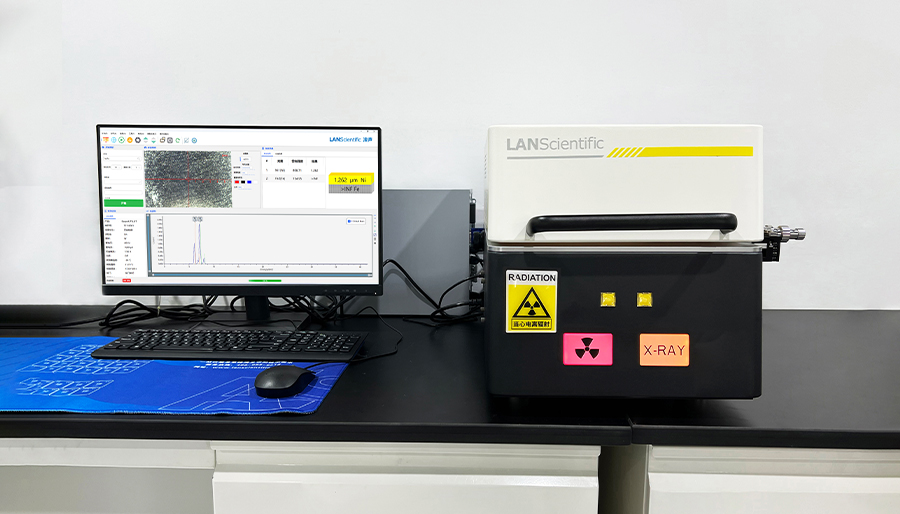

One touch measurement
The device is equipped with easy-to-use, intuitive, and intelligent analysis software. Anyone can test samples without training. Just click "Start Test," and you can access the test results within seconds.
