NOBLE T7 Optical Emission Spectrometer
Noble T7 Full-Spectrum Optical Emission Spectrometer is a next-generation metal analysis device that combines speed, precision, and reliability in metal analysis. It performs fast and accurate analysis across a wide range from trace elements to high concentrations in solid metal samples; it delivers outstanding performance especially in the detection of non-metallic elements in the deep ultraviolet (UV) region.
The Full-Spectrum OES provides stable results under all conditions with its advanced control system, maintenance-free GDS digital light source, high-frequency excitation technology, and anti-interference design.
User-friendly features such as the plug-and-play lens structure, light-blocking curtain system, and open-type spark stand not only save time in laboratories but also ensure ease of use.
Gallery
Features

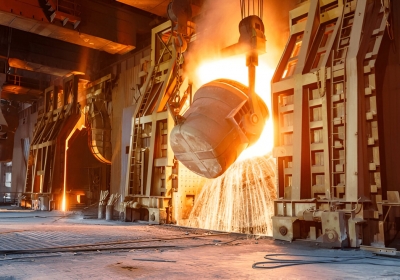

Casting
Machining
Aviation and space industry
Automotive spare parts production
Rail systems
New material development
Defense and military industry
Technical Parameters
Light Source Type: Digital light source, High Energy Pre-Strike (HEPS) technology
Wavelength Range: 130–800 nm
Grating Focal Length: 401 mm
Discharge Frequency: 100–1000 Hz
Discharge Current: Maximum 500 A
Power Supply: AC 220V, 50/60 Hz, 1200 W
Dimensions and Weight: L610 × W740 × H1140 mm, 160 kg
Advantages
The New Standard in Productivity
One large argon cylinder (12 m³ / 40 liters) guarantees a minimum of 4,500 analyses. Argon is used only during analysis and does not consume when the system is idle. Argon first passes in front of the lens to clean dust and protect the optical surface—thus, the lens requires cleaning less frequently over time.
Smart Software and Support
- Thanks to the extensive element library, new elements can be added simply through software updates.
- Real-time optical deviation correction technology ensures continuous accuracy.
- Automatic spectral line recognition and calibration system allows pixel-level correction without user intervention.
- 24/7 free technical support is provided via remote connection software.
Compact and Ergonomic Design
- NobleT7 integrates all its components into a single compact body; no table is required.
- Easily portable thanks to lockable wheels.
- 27-inch touchscreen all-in-one computer with a user-friendly Turkish interface.
- The vacuum pump (Ulvac brand) operates under automatic control and is active only 3 minutes per day, minimizing maintenance and energy costs.
Superior Technology and Performance
- It features 12 high-resolution CMOS detectors manufactured by Hamamatsu.
- Each CMOS unit has independent spark adjustment.
- Thanks to the vacuum optical chamber design, beam transmission is stable, long-lasting, and produces highly reliable results at low detection limits.
- The advanced optical heating system maintains the temperature constant at 38°C, enabling operation independent of external environmental conditions.
- Even if the ambient temperature changes, recalibration is not required.
Argon Gas Requirement
- Purity Rate: ≤ 99.9999%
- Input Pressure: 0.5 MPa
- Consumption (Flow Rate): 3.5 L/min
